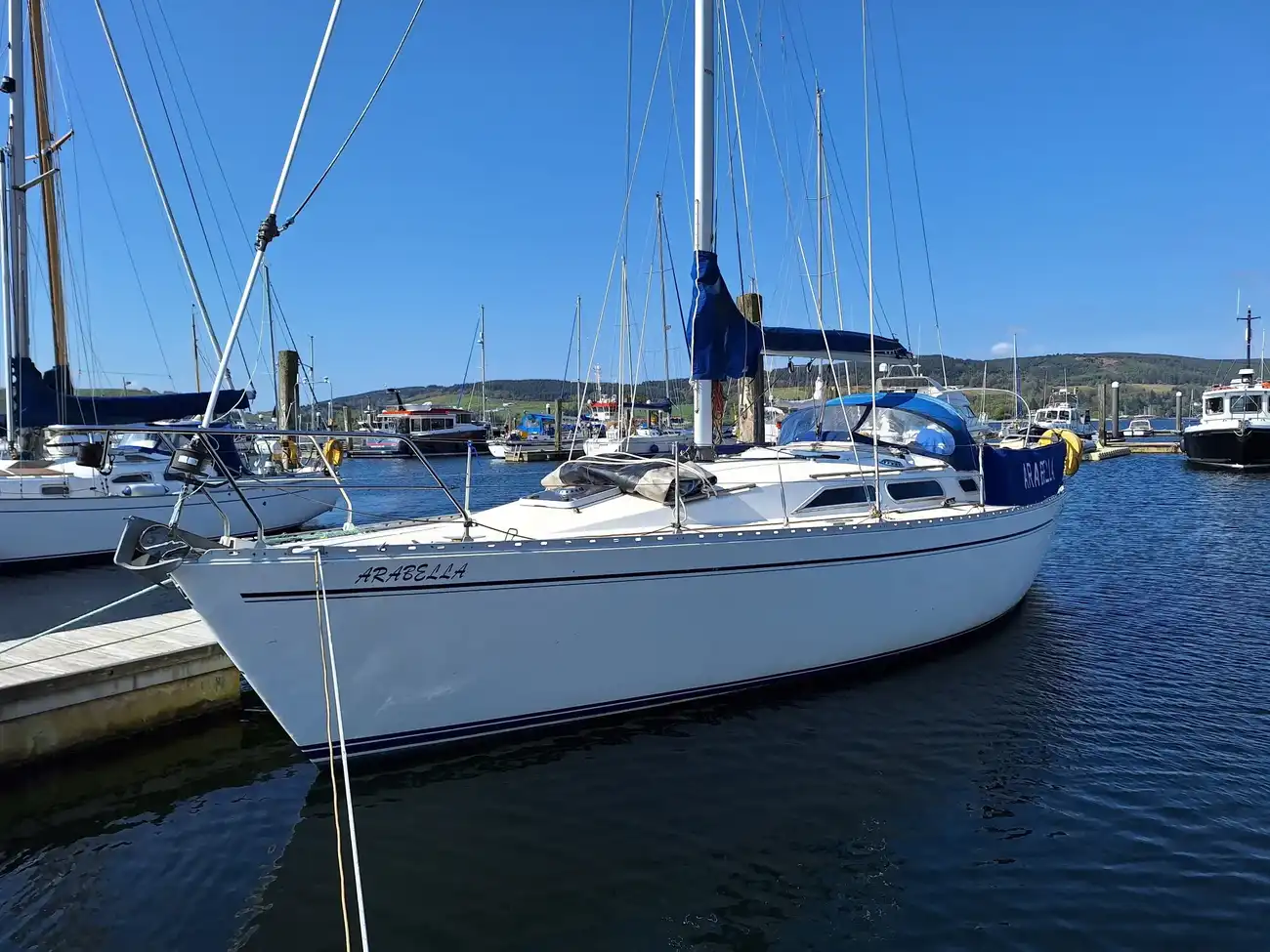

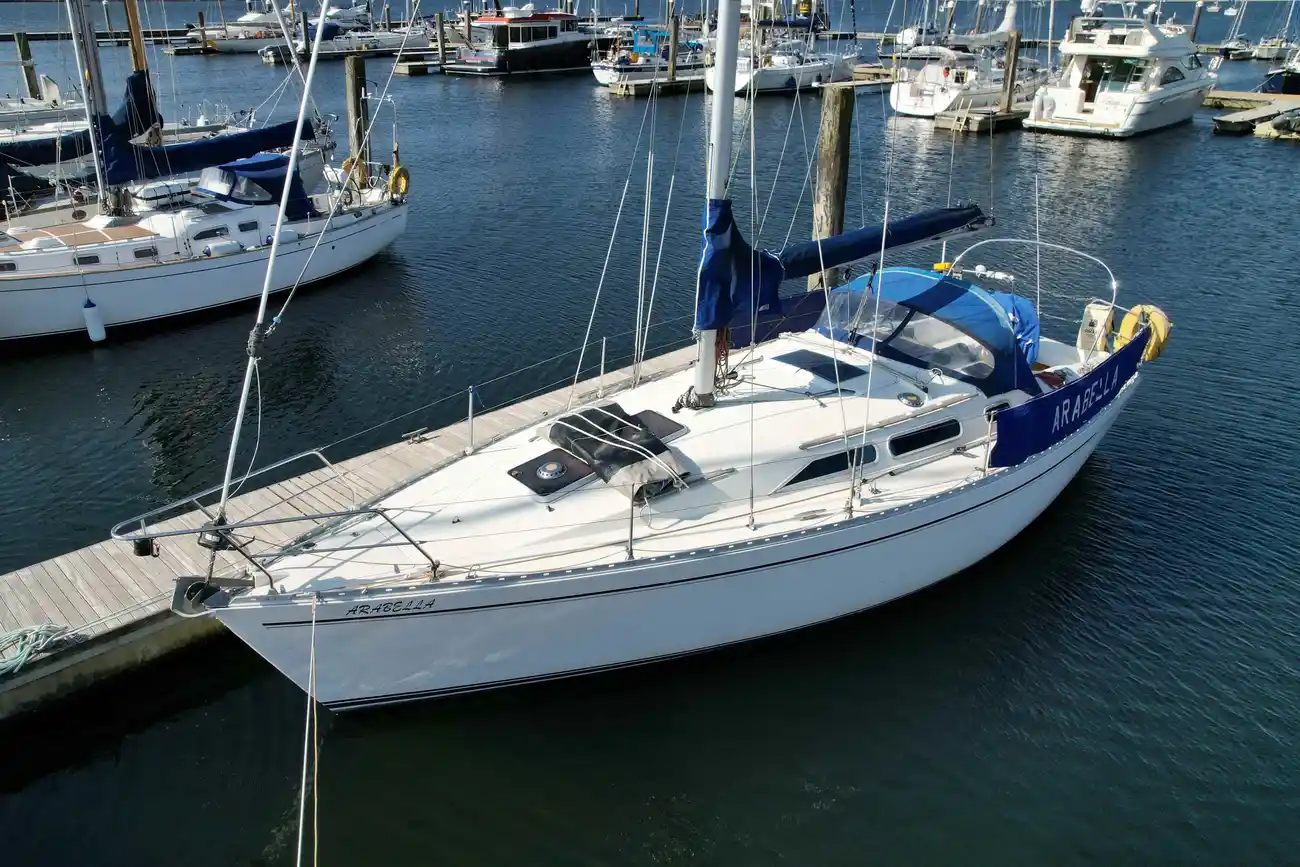

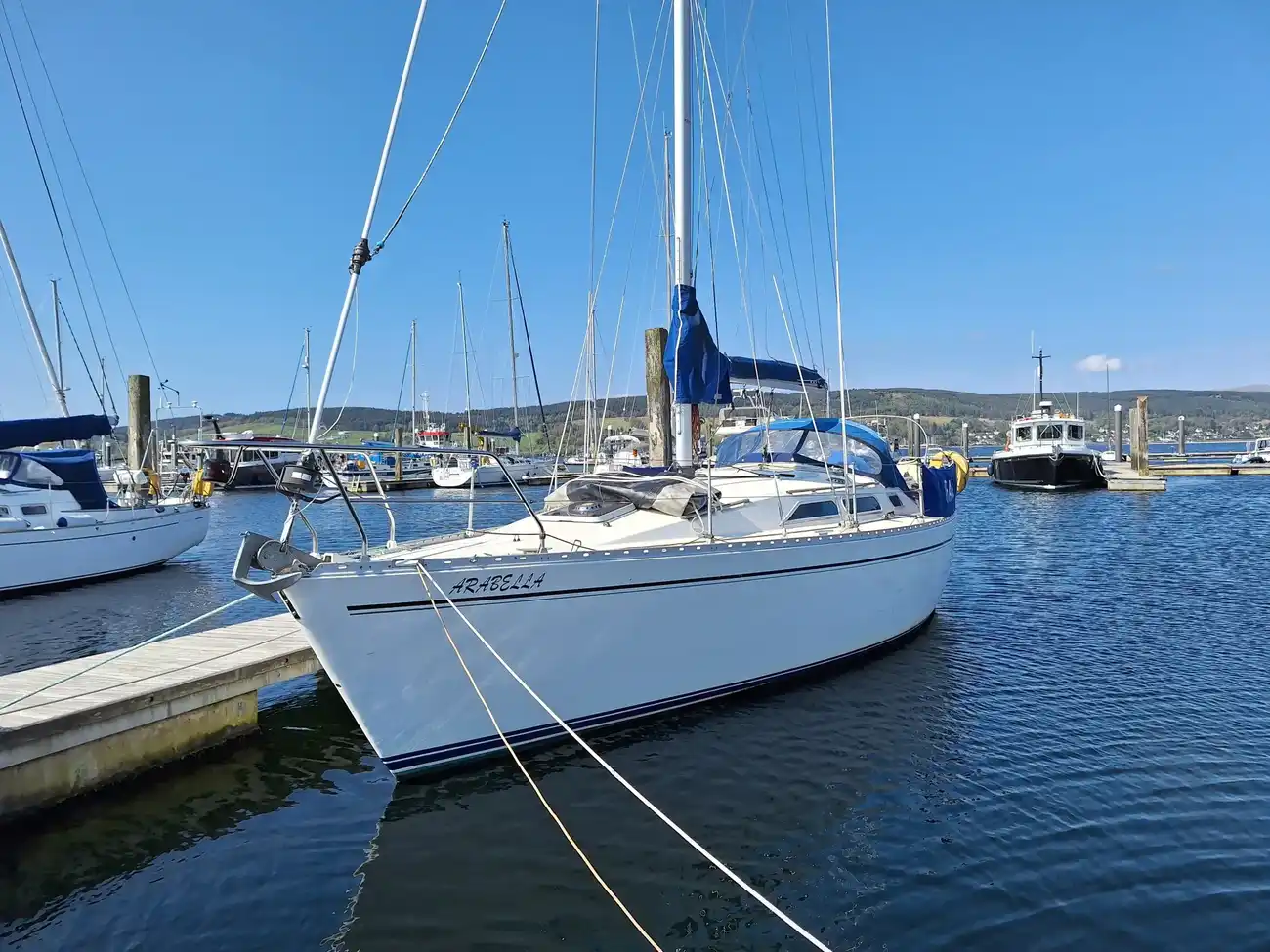

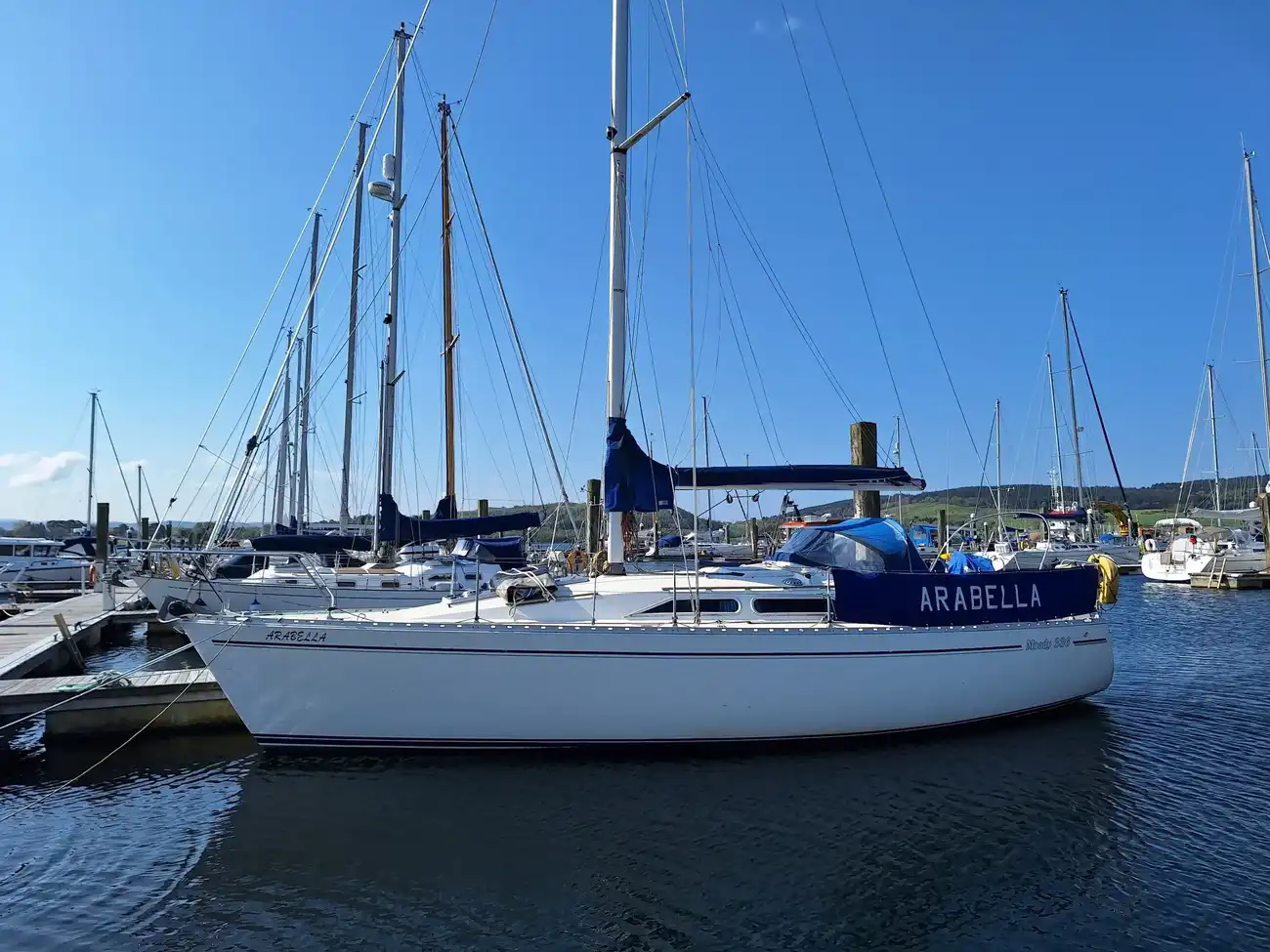

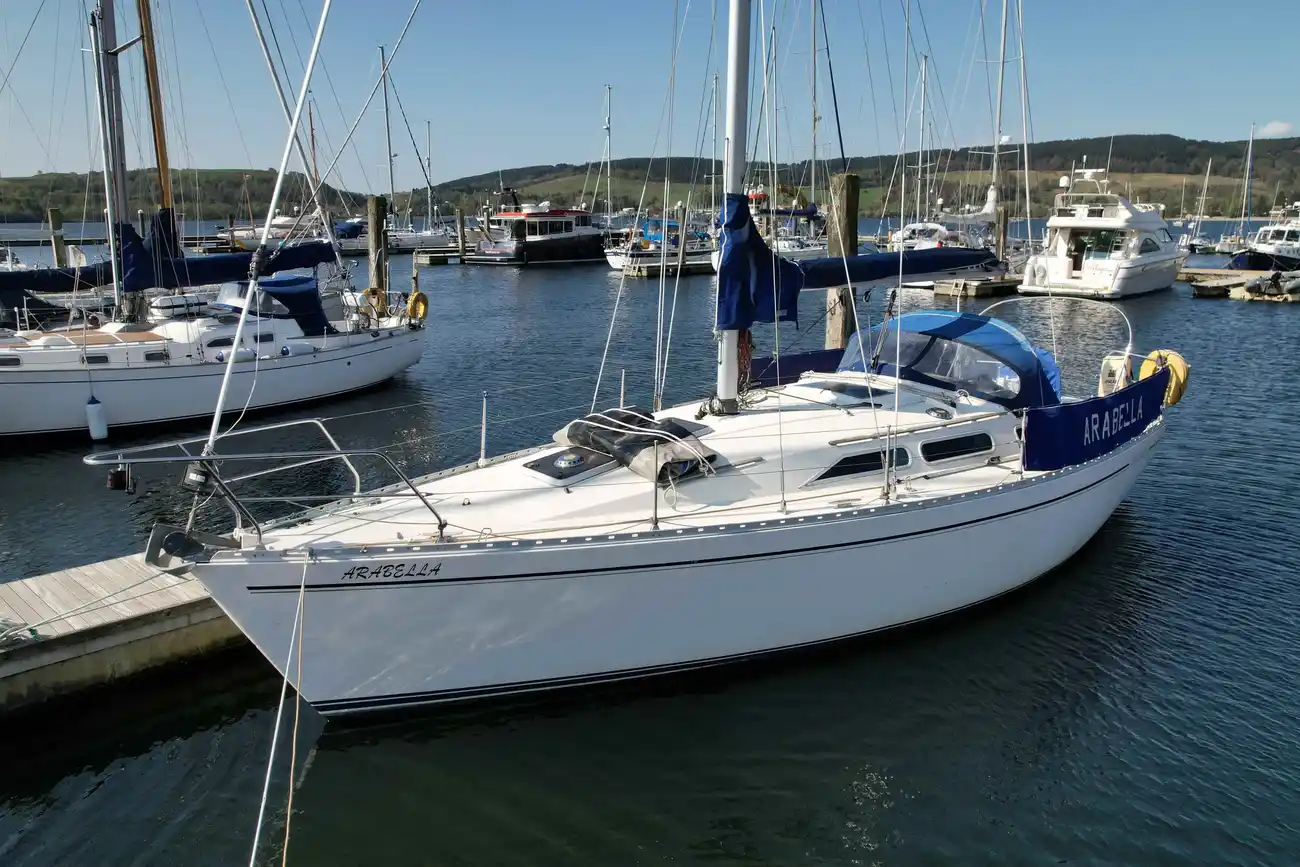

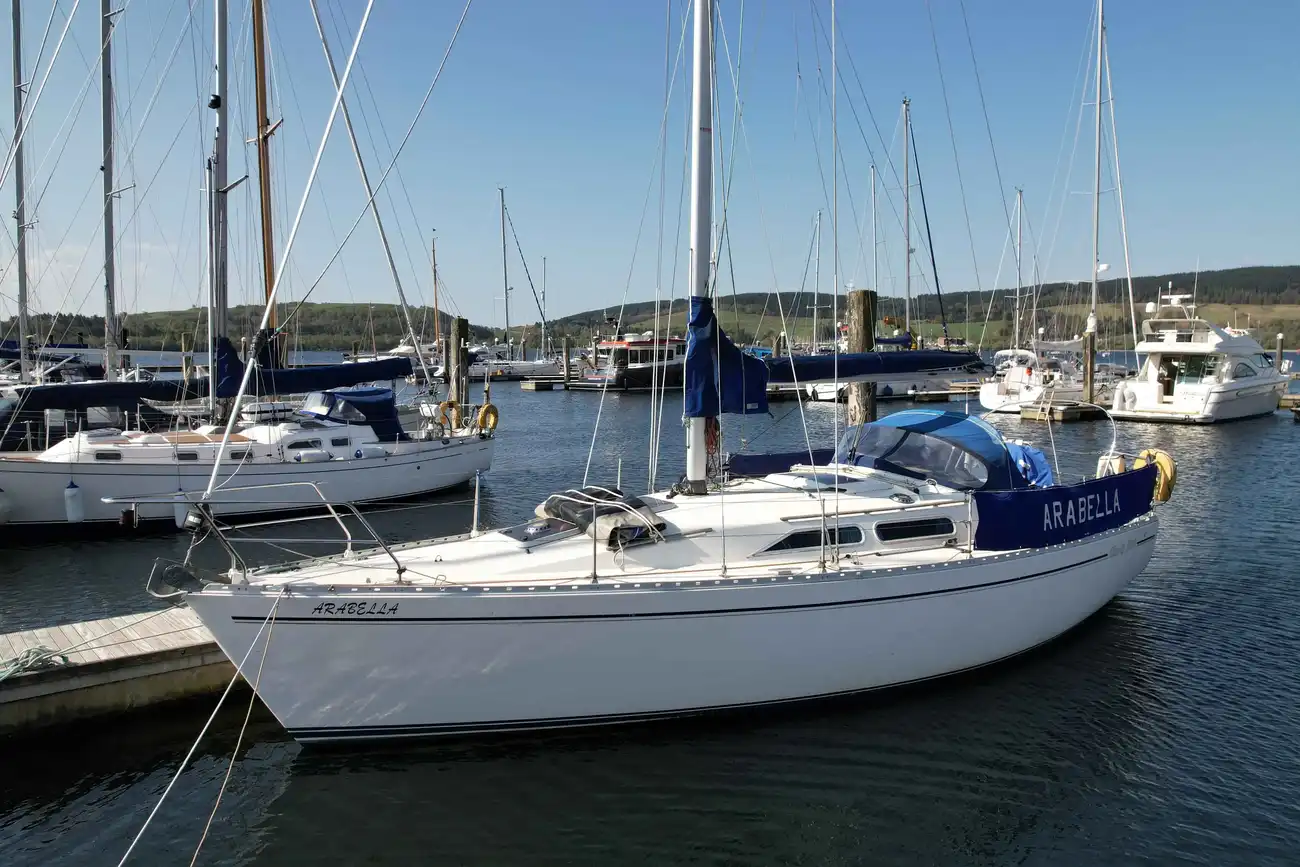

Moody 336 "Arabella", built in 1990.

The Moody 336, designed by Bill Dixon became an instant hit, with around 200 built up till 1998. Ideal for families, couples or those seeking a little more adventure. They have great performance and accommodation which is a hard combination to combine. She will sleep 6/7 and has a huge owners suite aft.

If you are looking for a family cruising yacht with a nice turn of speed the Moody 336 is hard to beat. "Arabella" has been in the same ownership for the last 2 2years, she has been well looked after and is ready to set sail.

Dimensions & general info.

• Beam - 3.54m
• Draft - 1.68m
• Displacement - 5720kg
• Ballast - 1809kg
• Built - 1990
• Designer - Bill Dixon
• Builder - Marine Projects (Plymouth) Ltd.
• Sail No. - 336! A rather nice thing to have.
• It is understood there have been 3 owners from new. The current owners have had her for 22 years!

Hull, deck & superstructure

• White GRP hull in good condition.
• Coppercoat copper enriched epoxy antifouling system applied over the original Cuprotect system in 2017 and maintained each season since. She is being hauled for maintenance on the 26th May 25.
• White GRP deck & superstructure.
• Iron fin keel.
• Skeg hung rudder.
• Wheel steering.
• Aft cockpit.

Interior and accommodation

• 6/7 berths in 2 cabins and single heads with shower.
• Satin varnished teak interior in good condition.
• Holly and teak stripe cabin sole with clean bilges.
• Petrol blue upholstery in good condition.
• Eberspacher D3C L, warm air central heating.
• Pressurised hot and cold water system.
  JVC radio stereo player and saloon speakers.

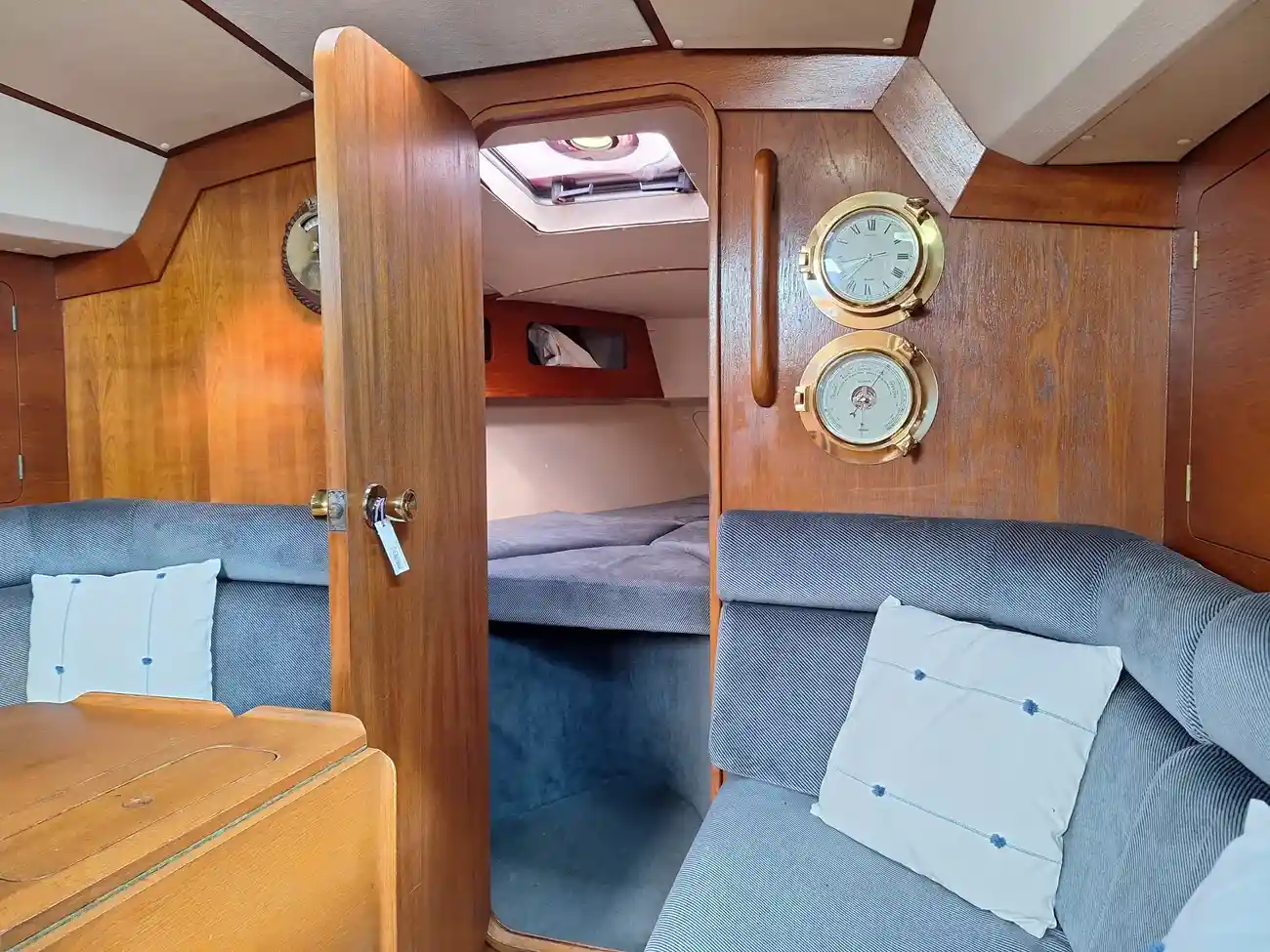

• Brass Nauticalia clock and barometer.
• There is also a lovely Brass clinometer, marked G.Collier - SS Atreus - Malta 1939.

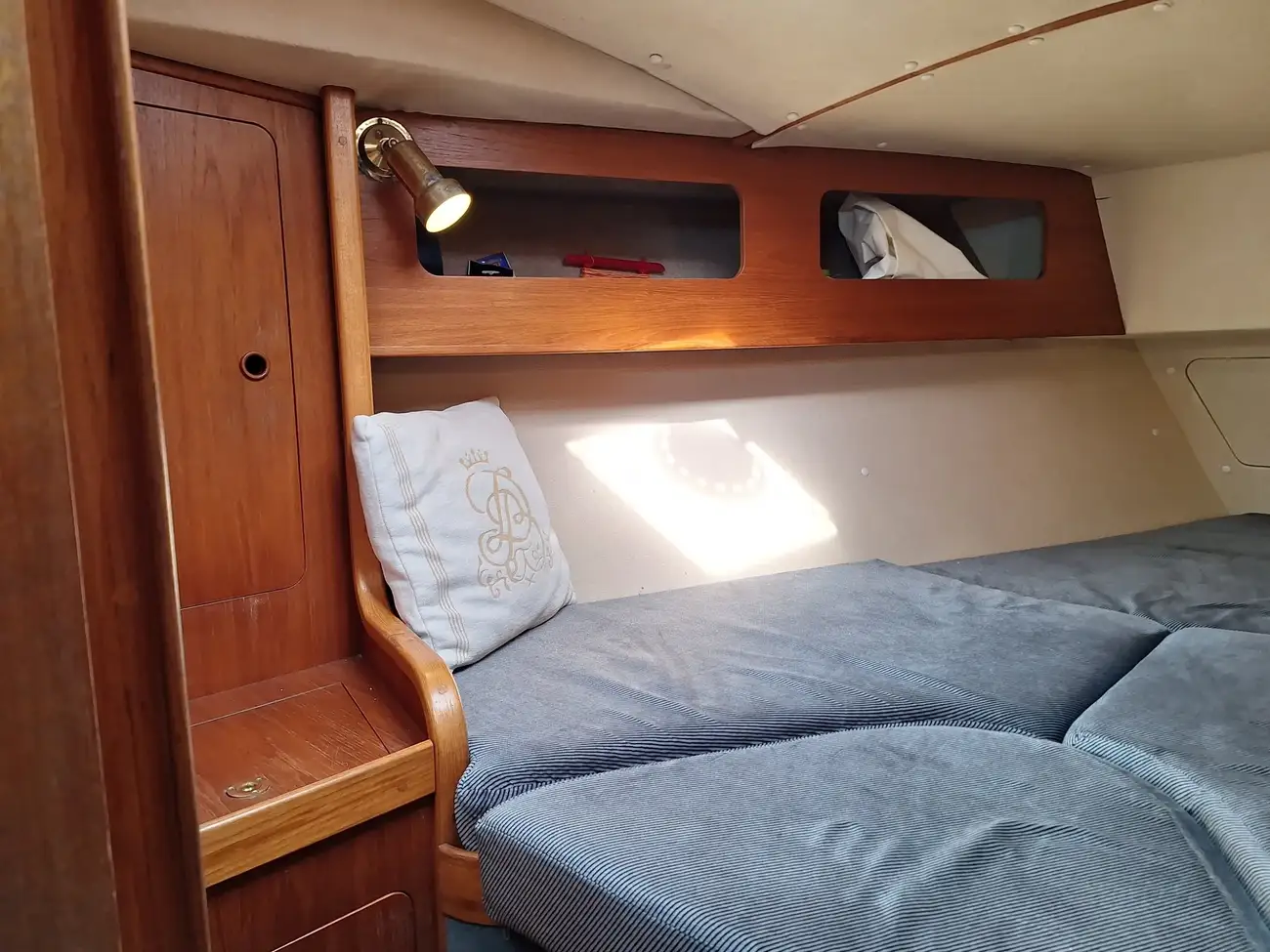

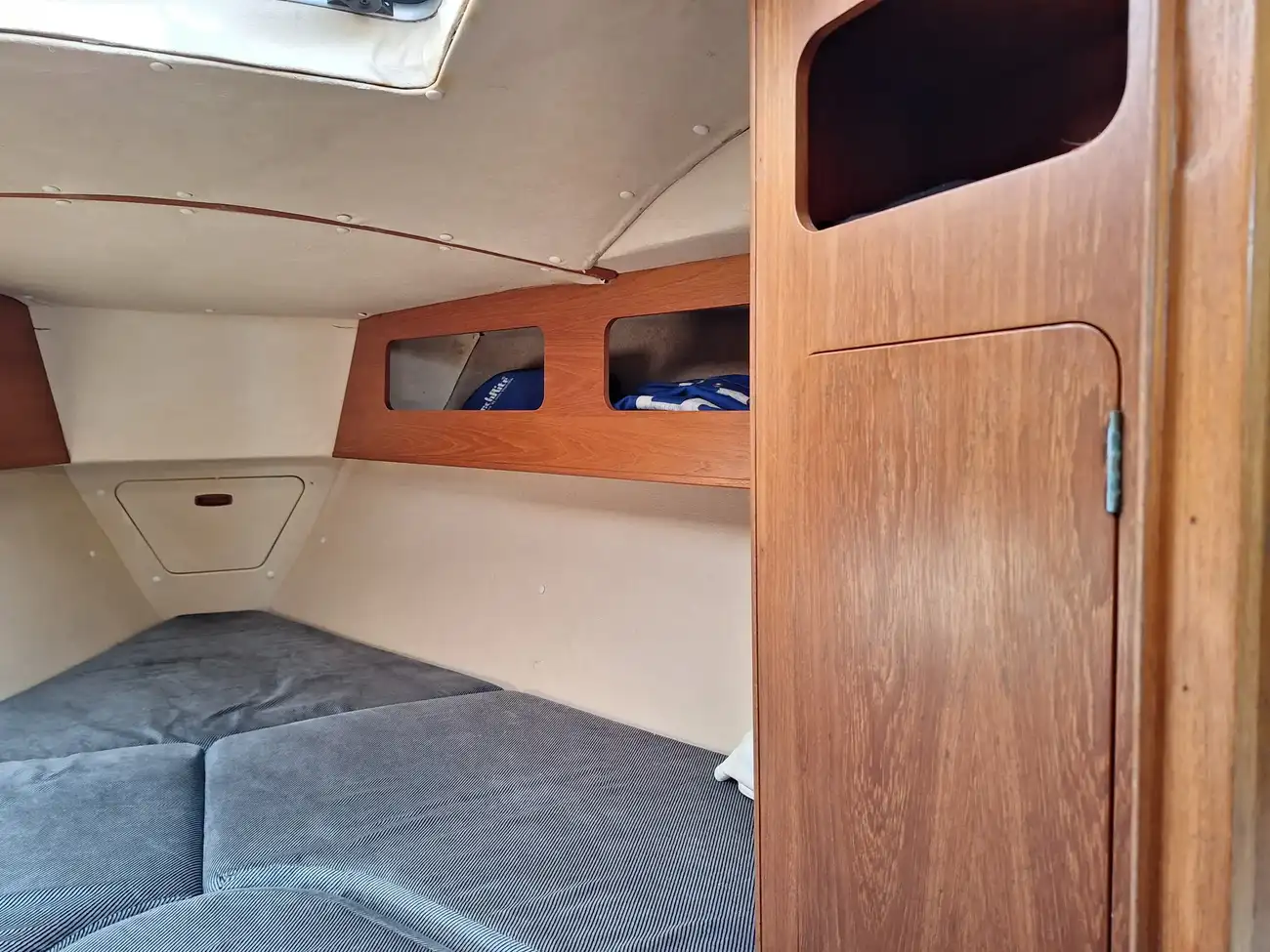

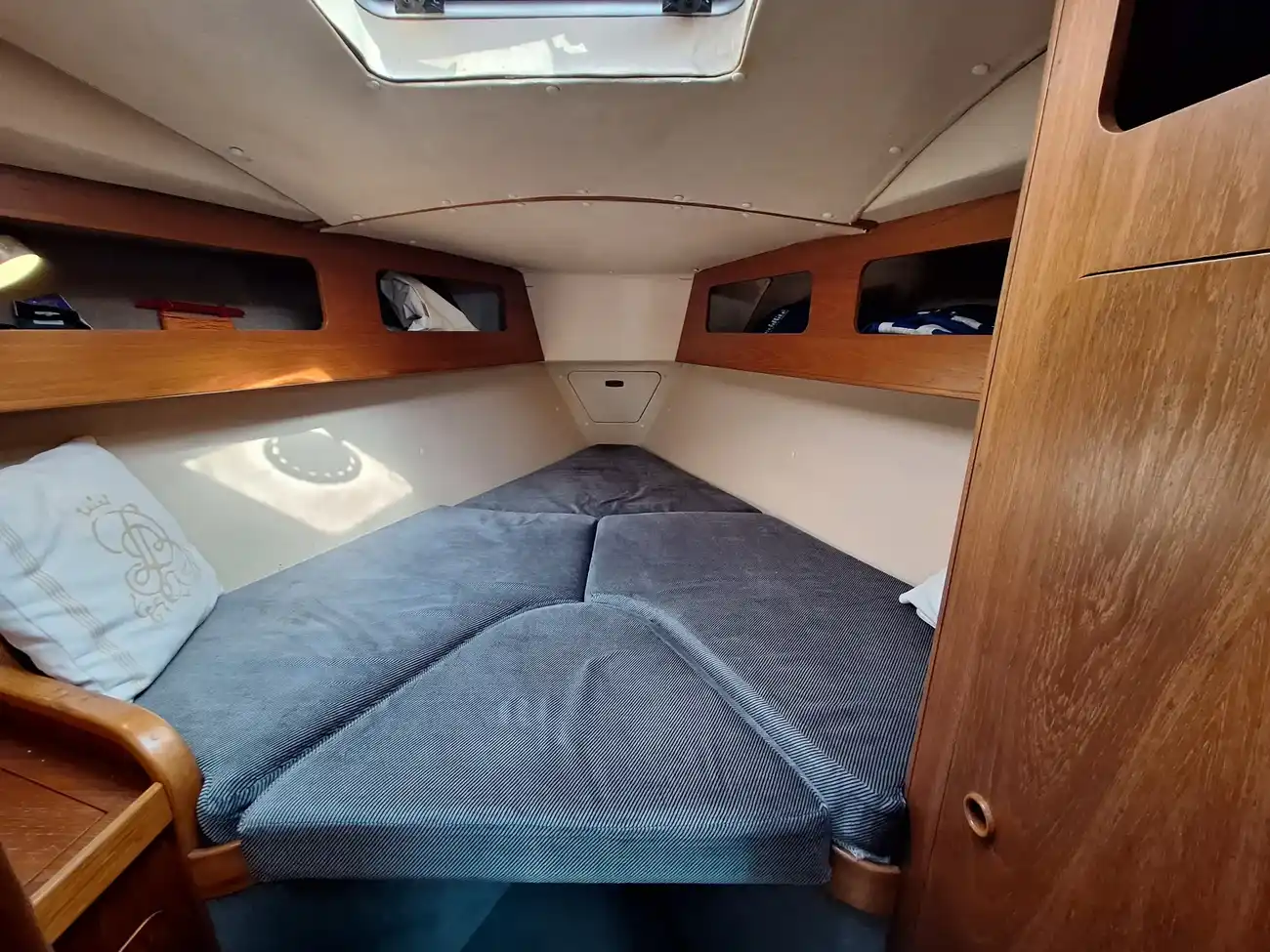

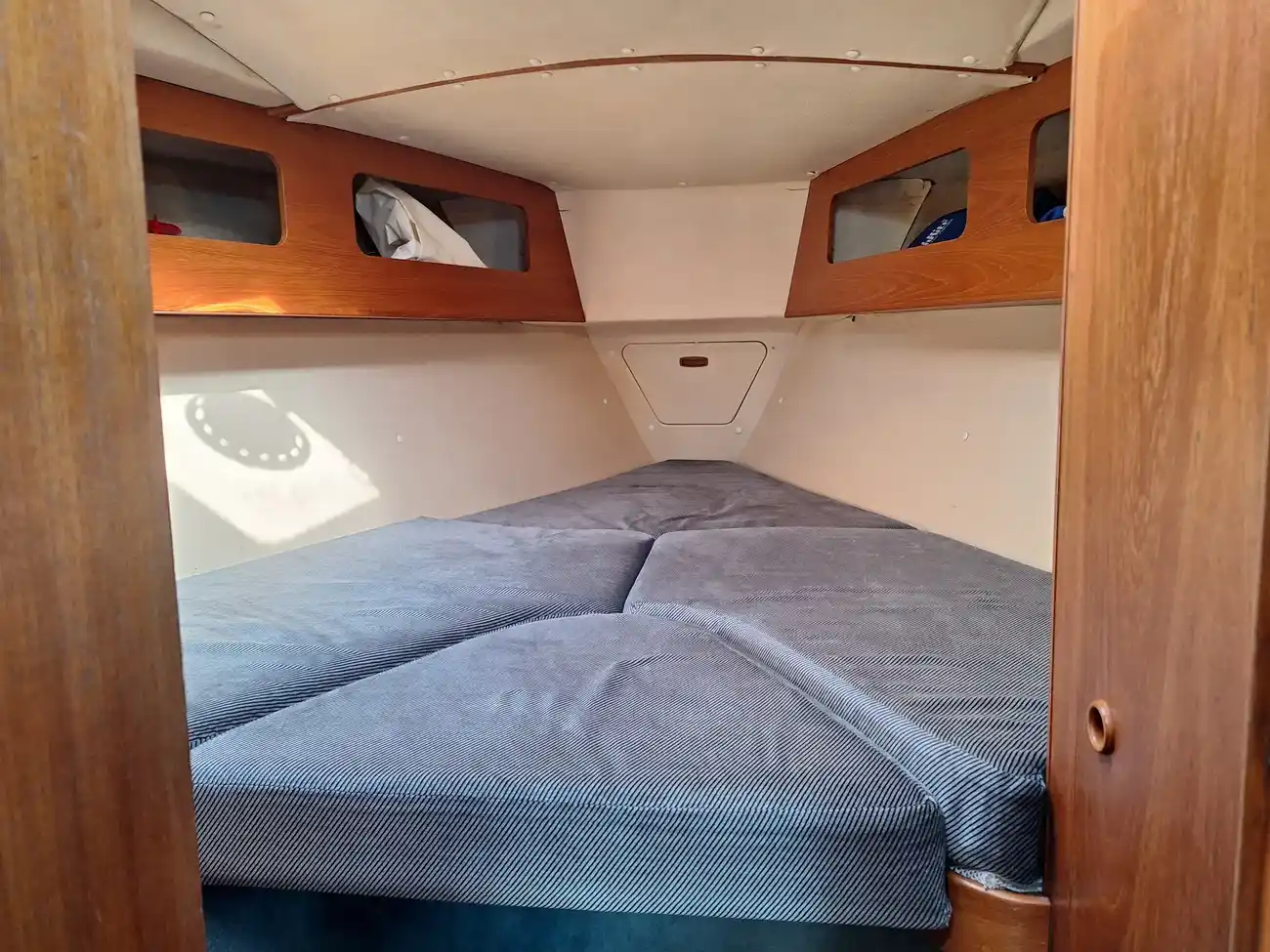

Forecabin

• V berths with infill to create a double.
• To port is a locker with vanity unit.
• To starboard is a hanging locker.
• There are raised hull side cave lockers port and starboard.
• Storage under the berths.
• Deck head hatch.

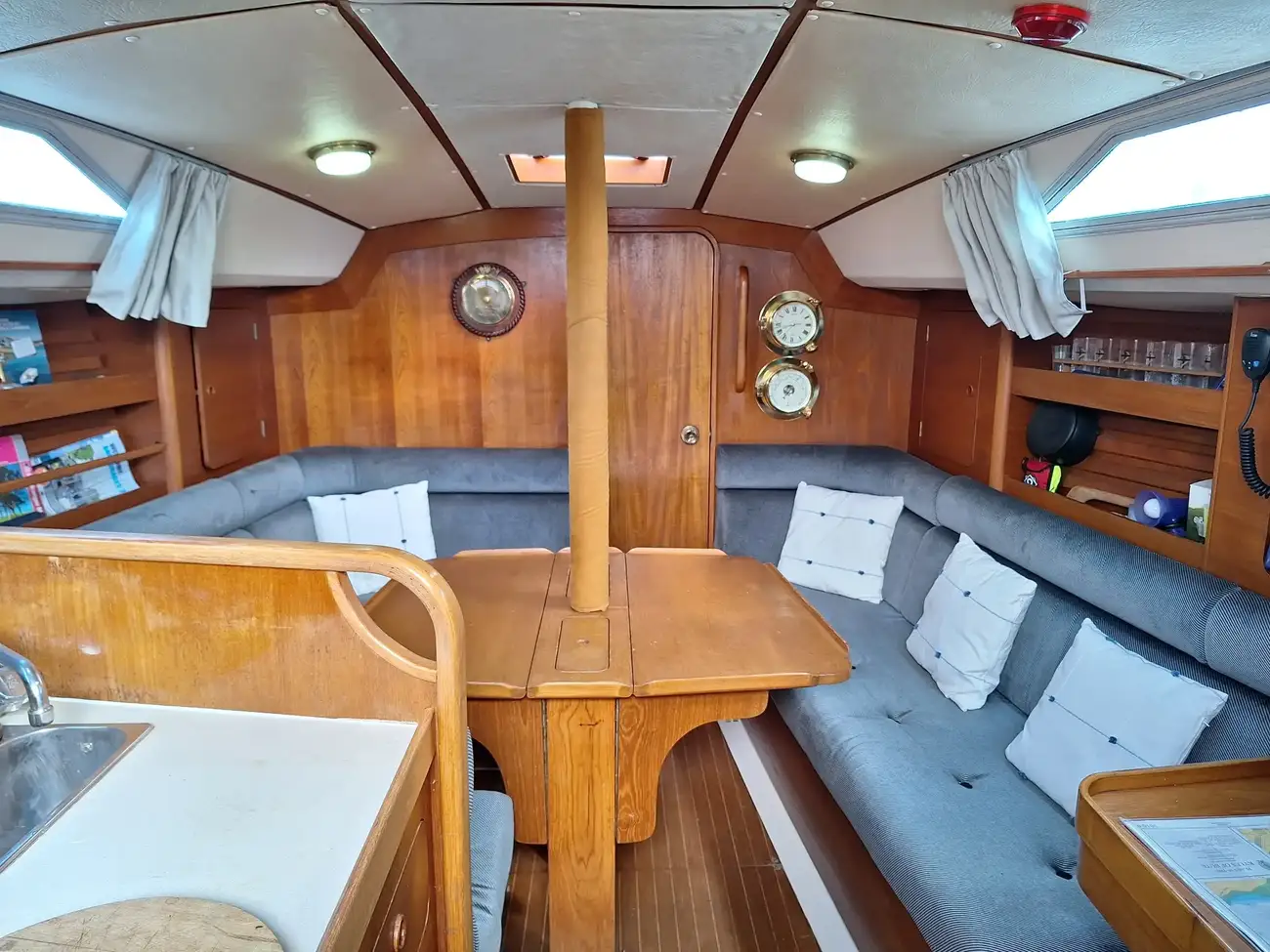

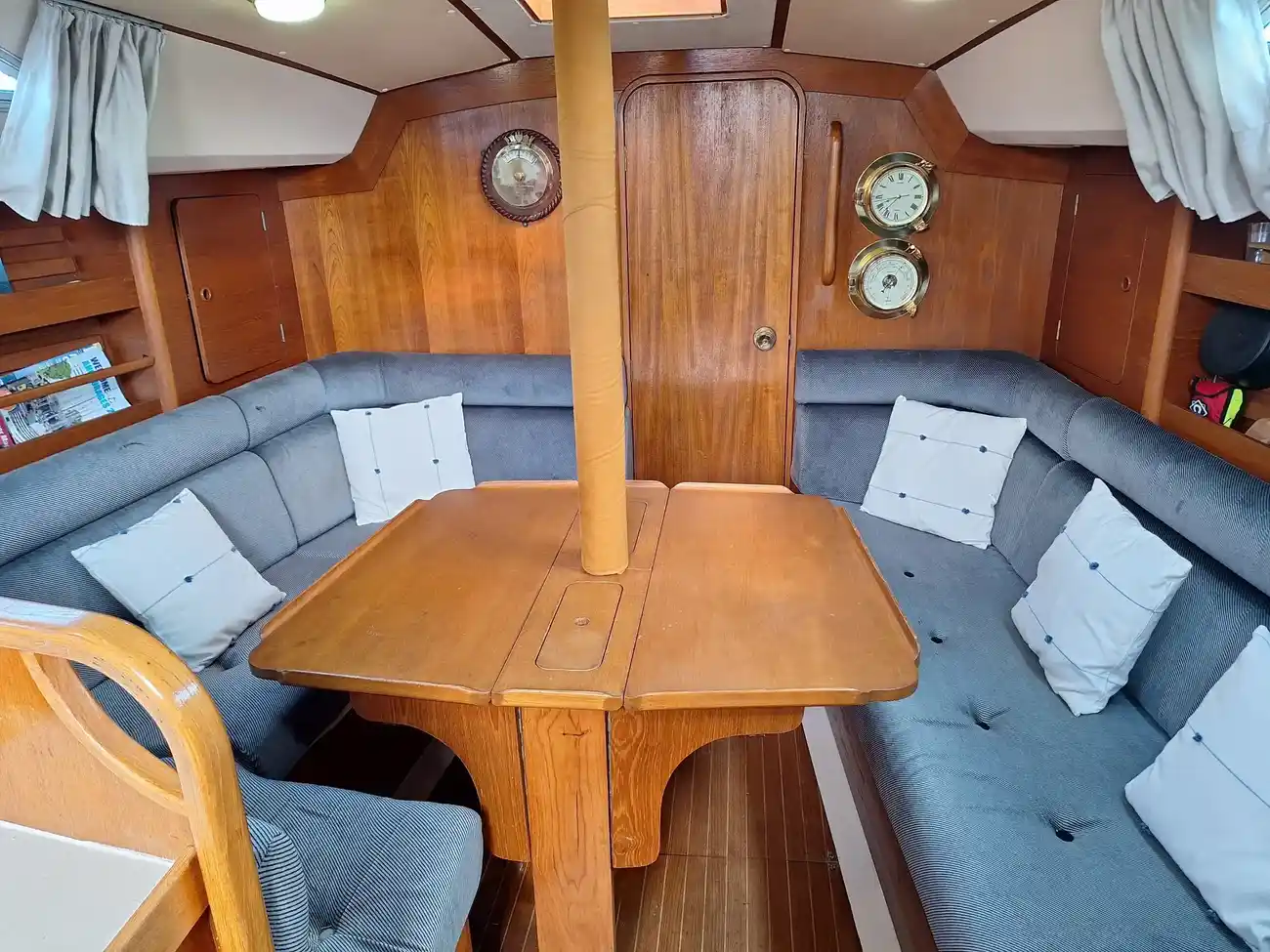

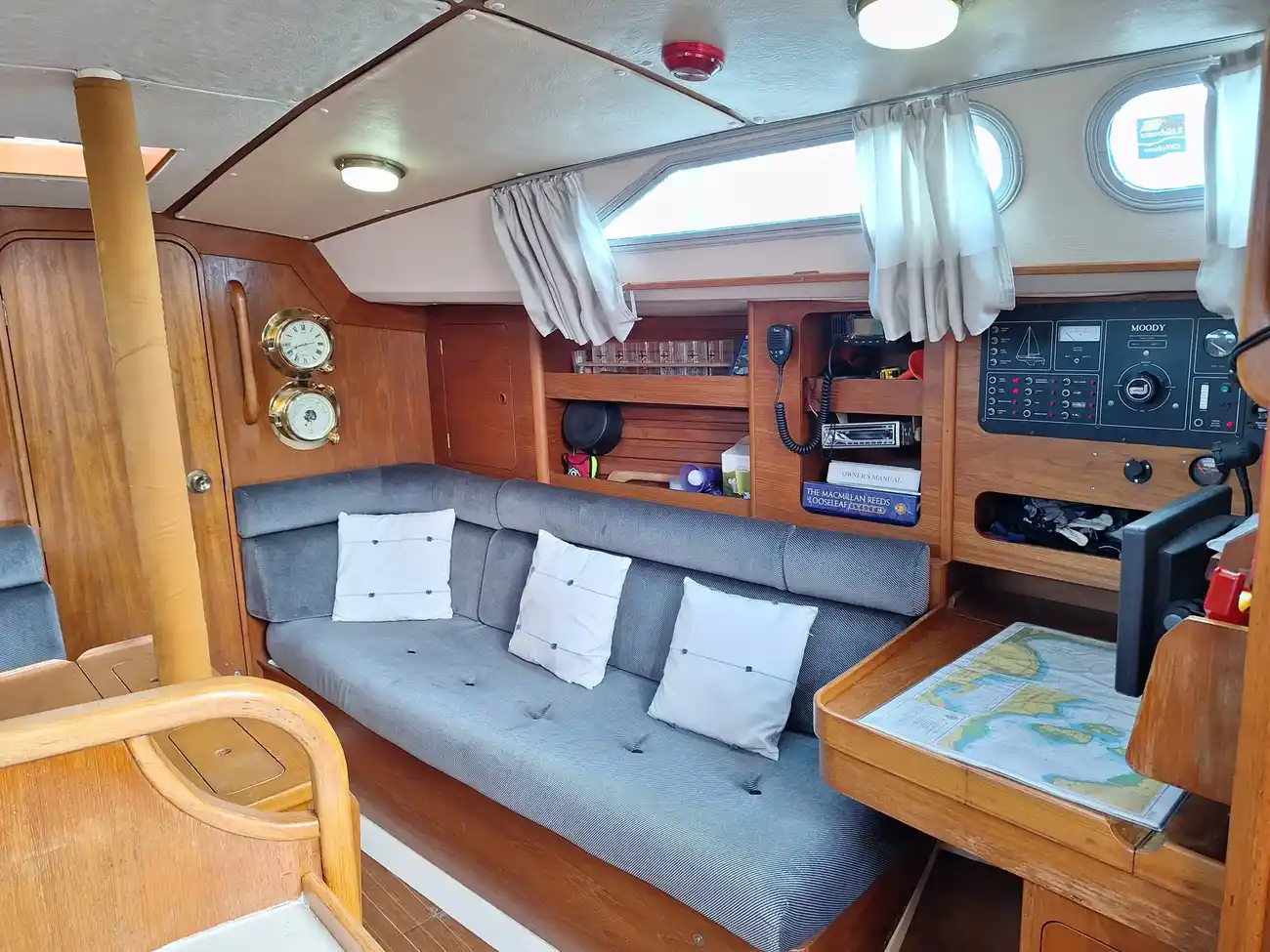

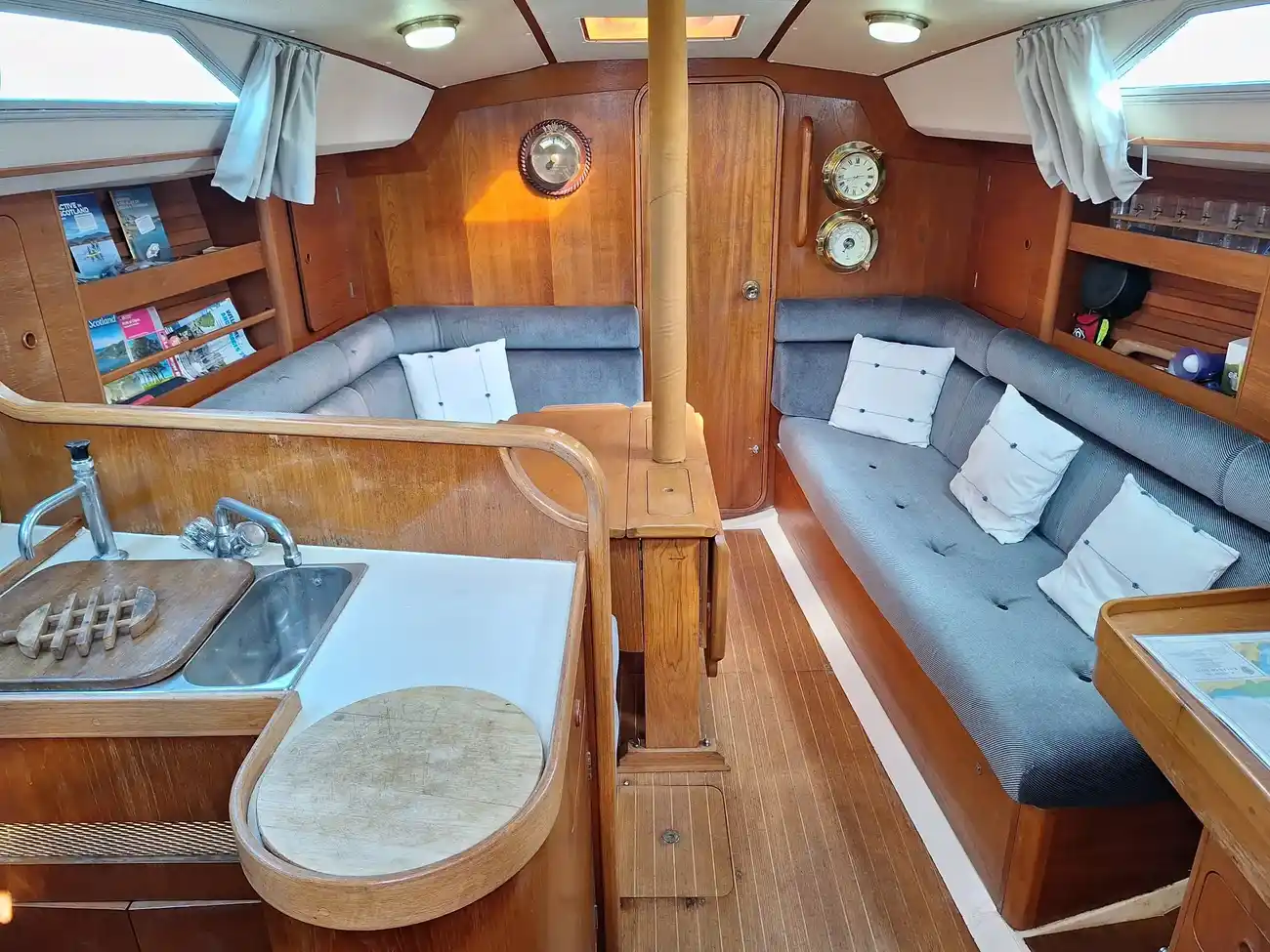

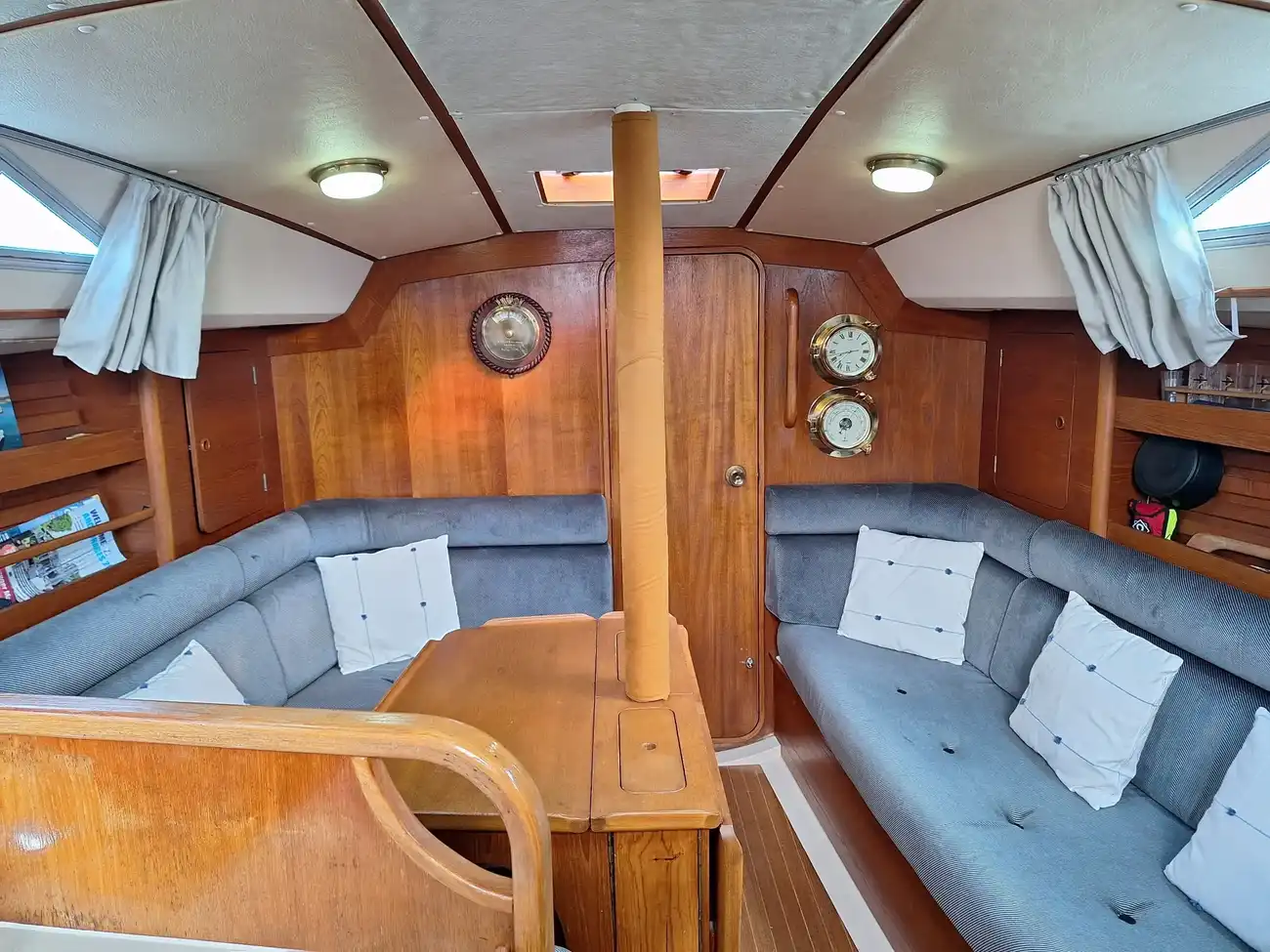

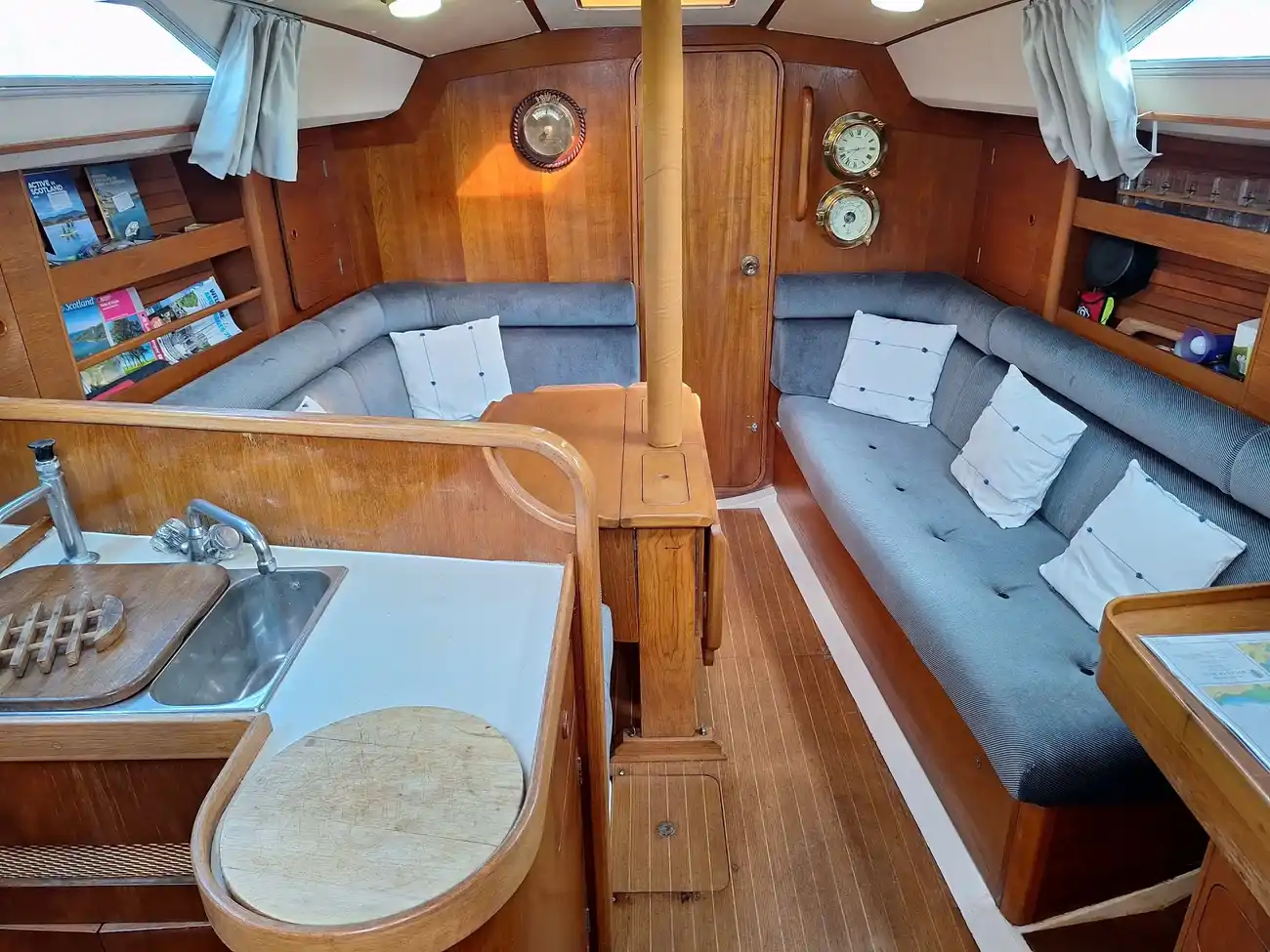

Saloon

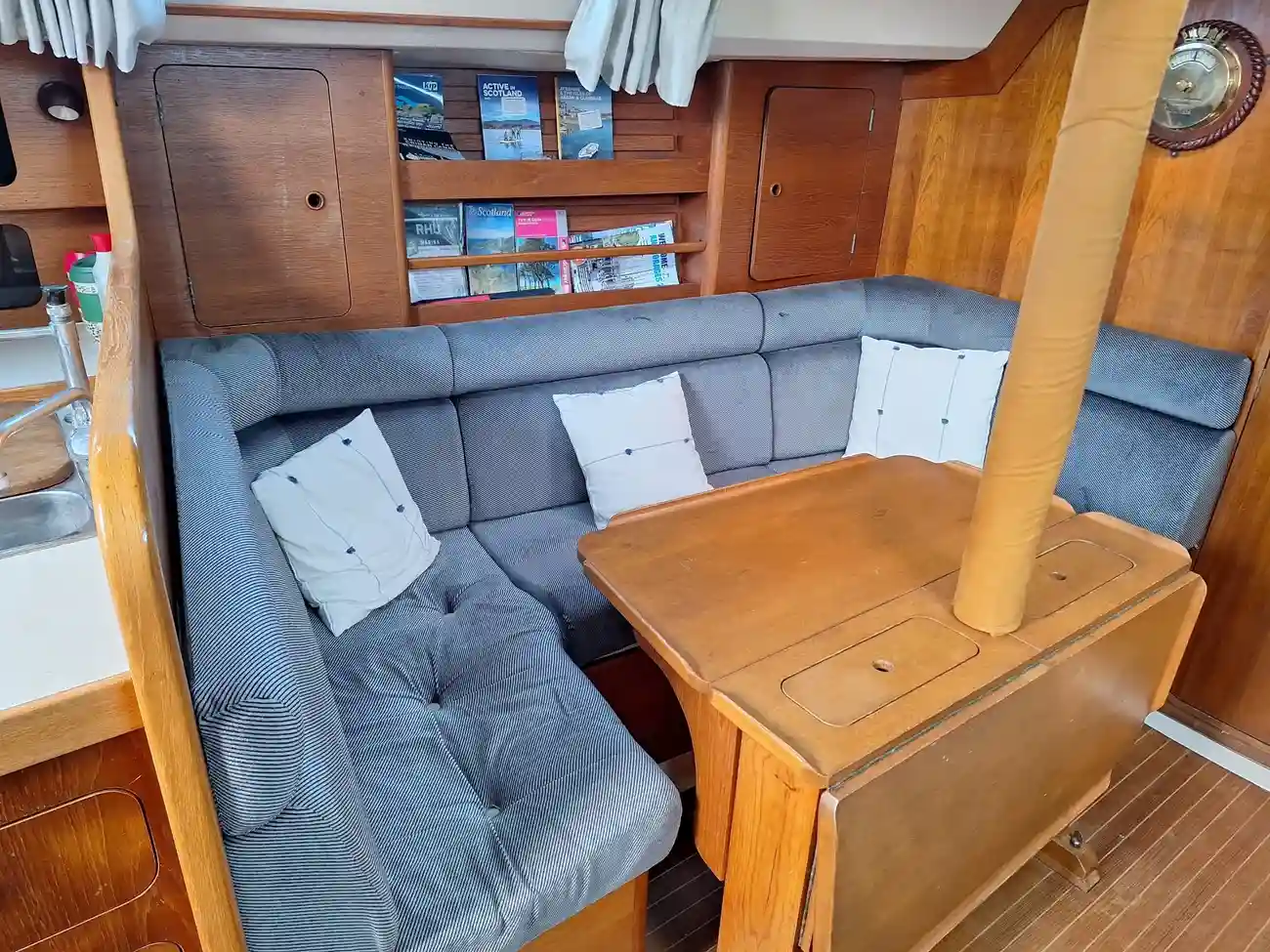

• U shaped seating area to port with single settee opposite. Both these are long enough to act as single berths.
• Central folding leaf table.
• Shelves and storage outboard.
• Central deck hatch and coachroof windows bringing in plenty of light.

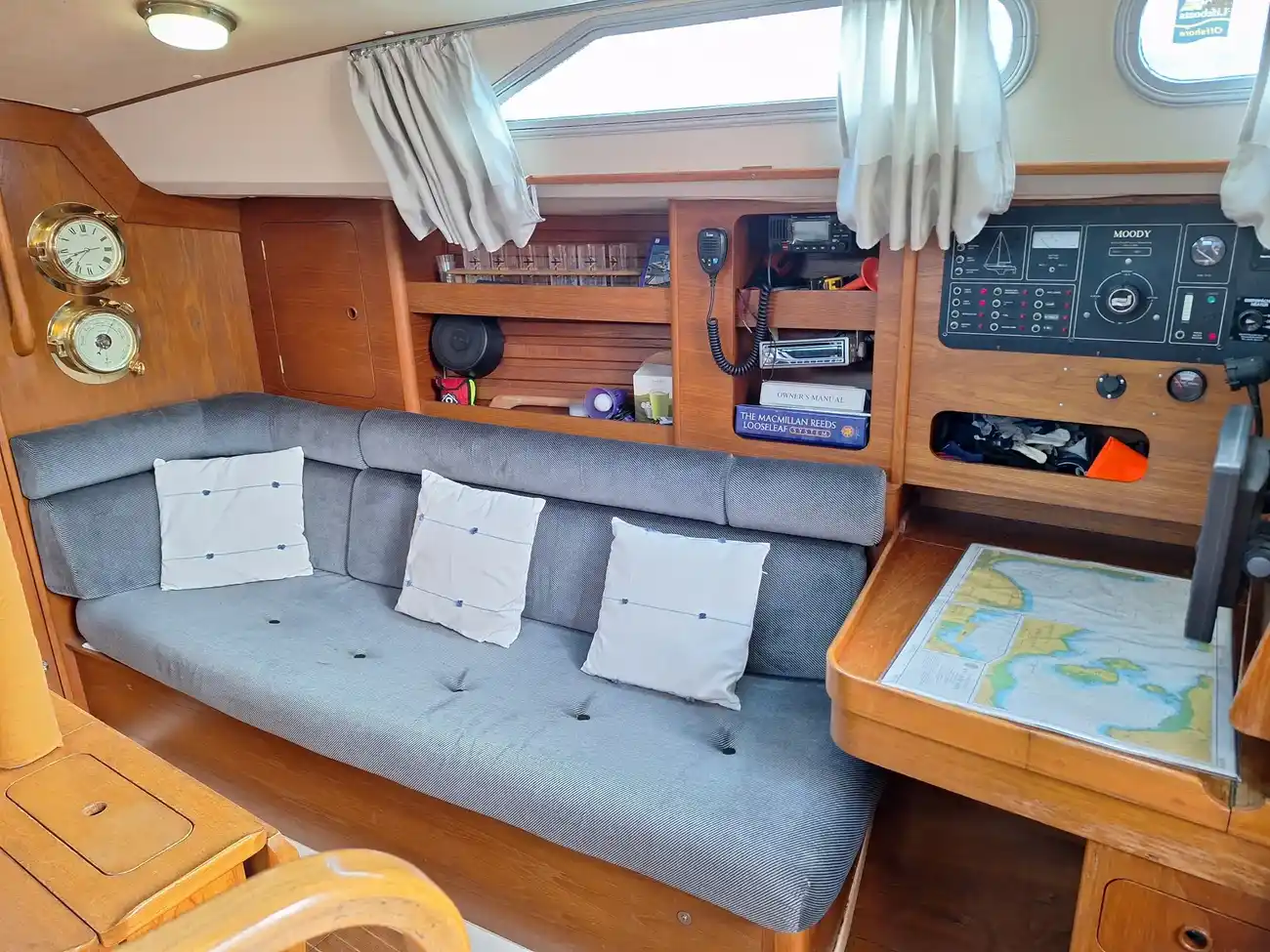

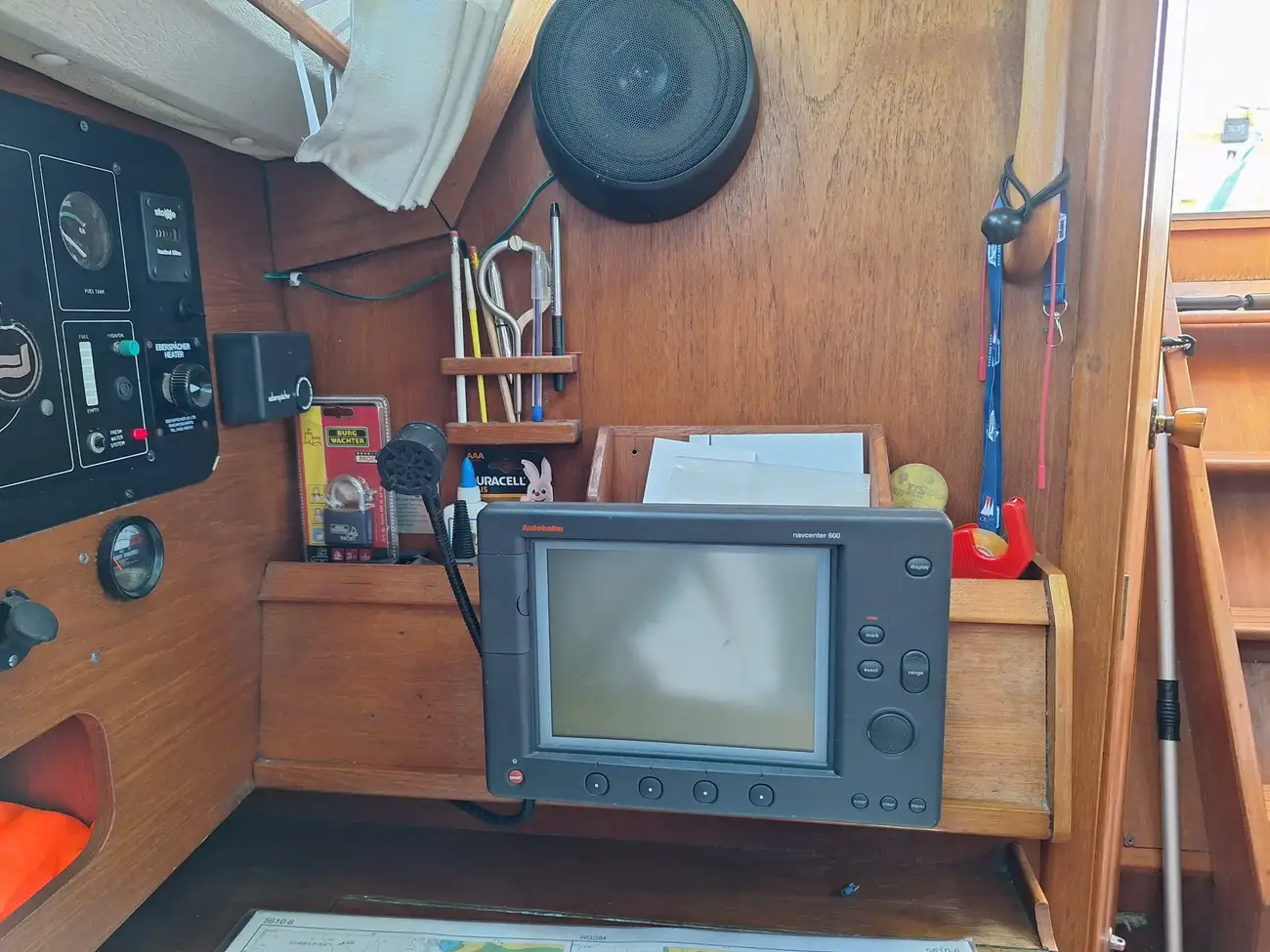

Navigation station

• To starboard is an aft facing chart table.
• Storage under the chart table lid, in drawers in the pedestal and out board cave lockers.
• The ships electrical distribution panel is here and instrumentation.

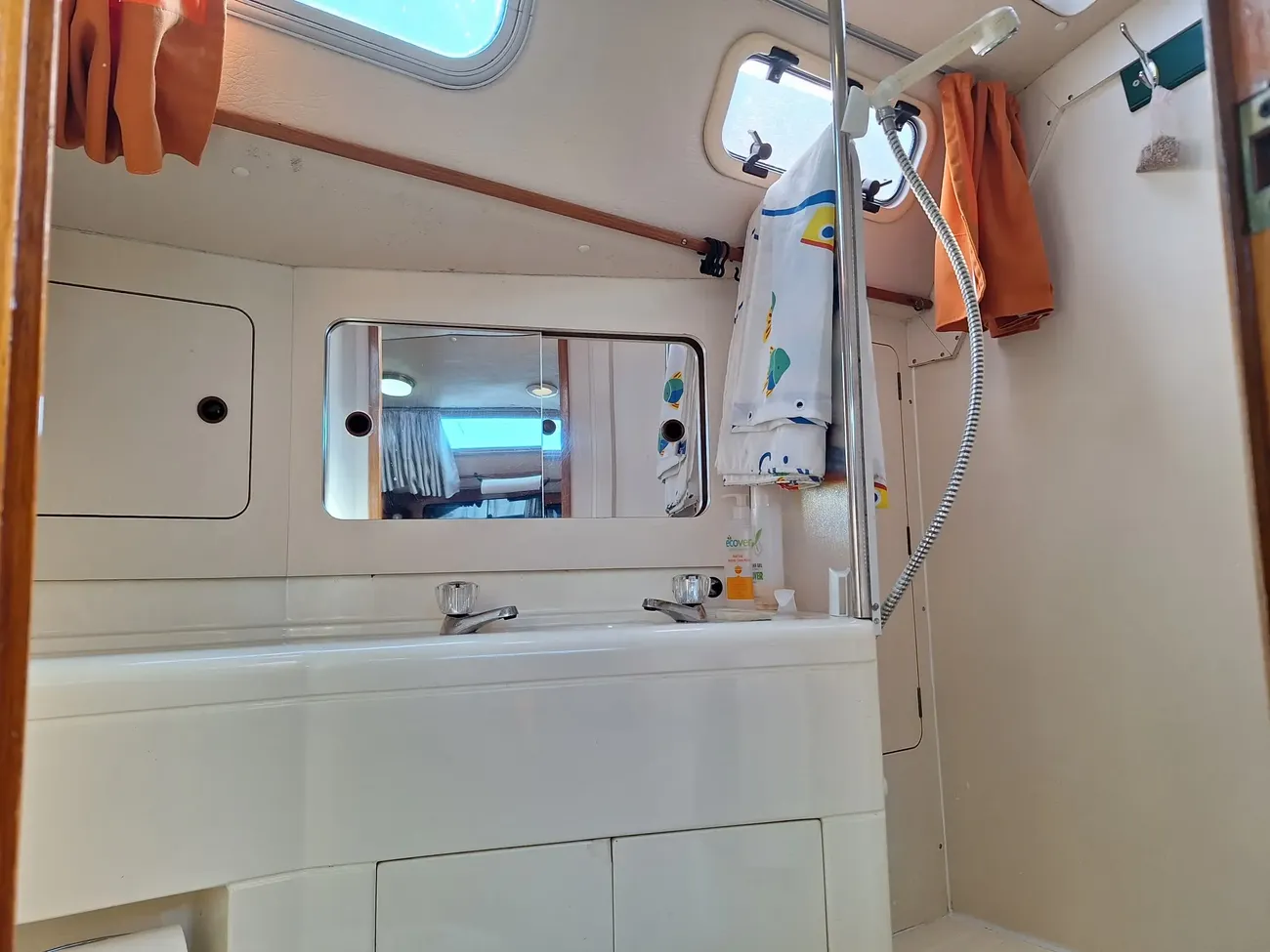

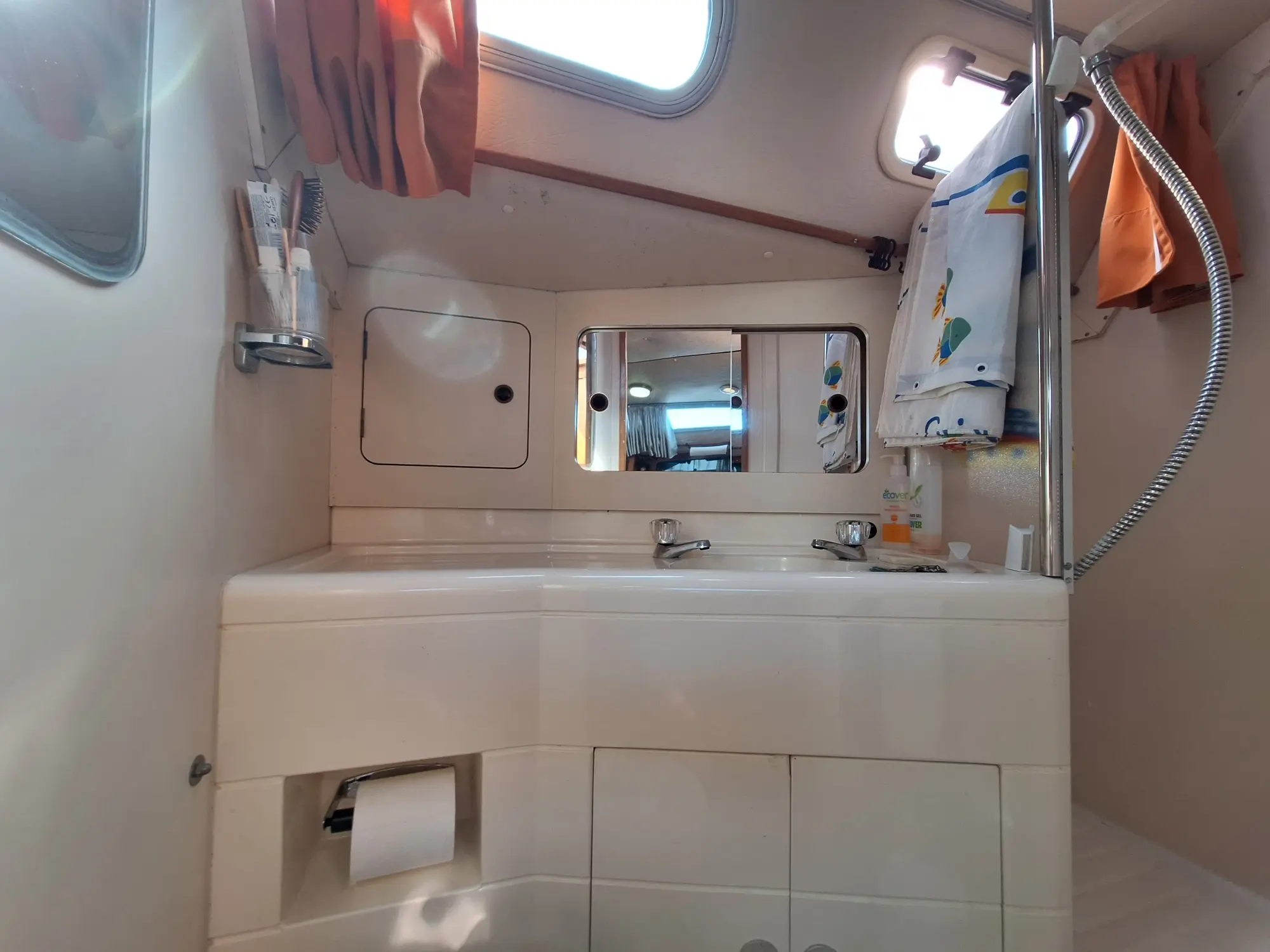

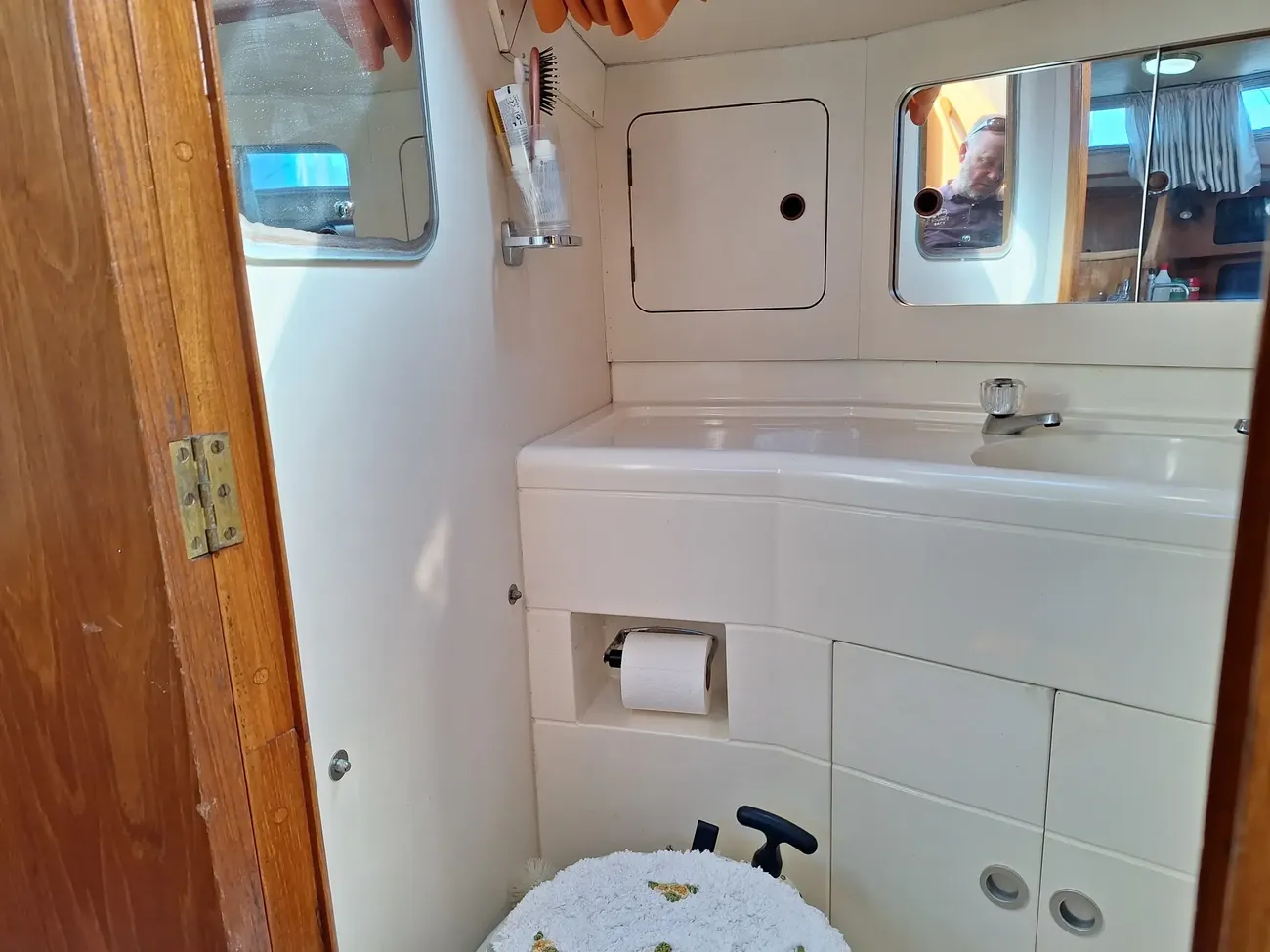

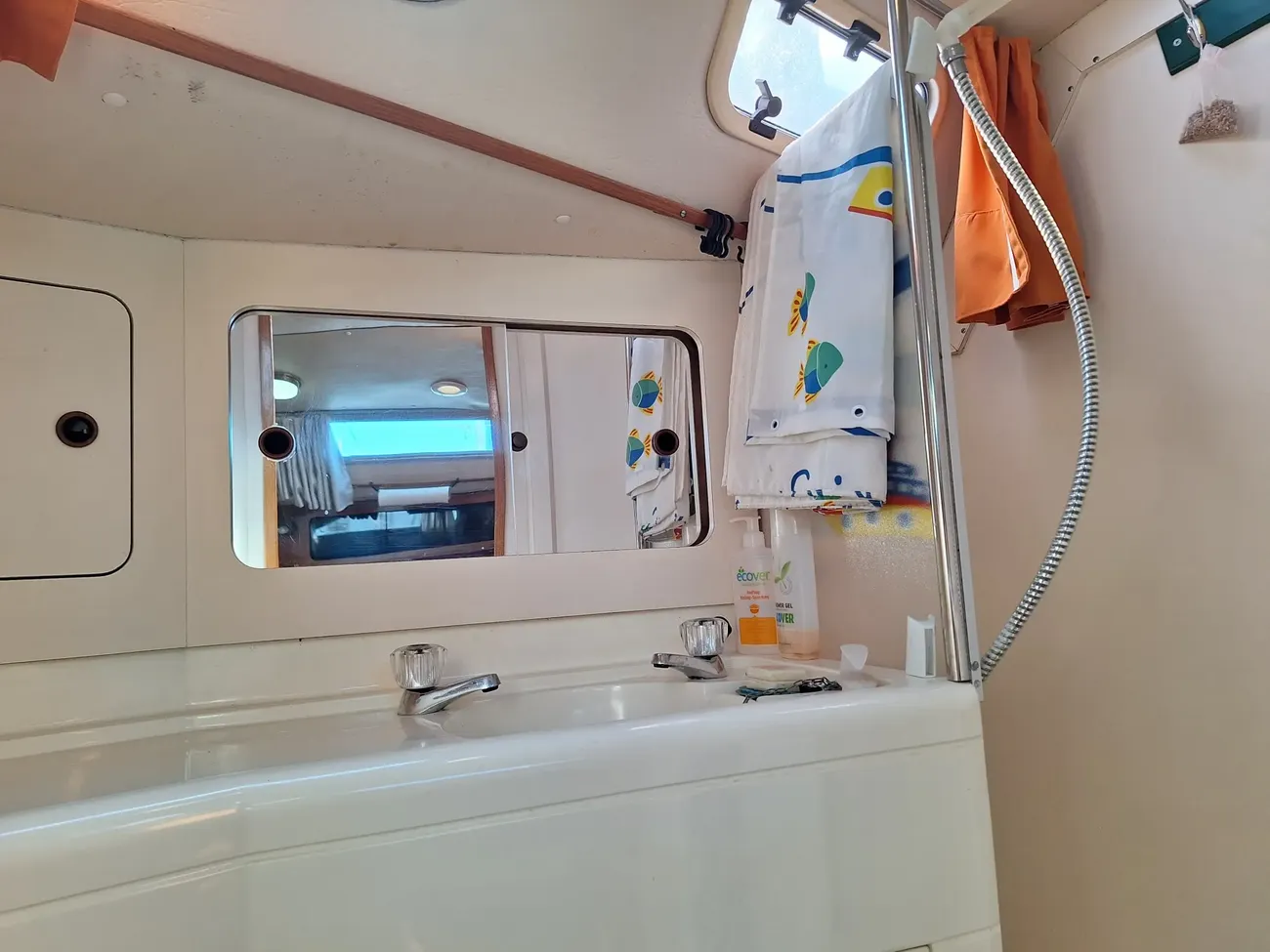

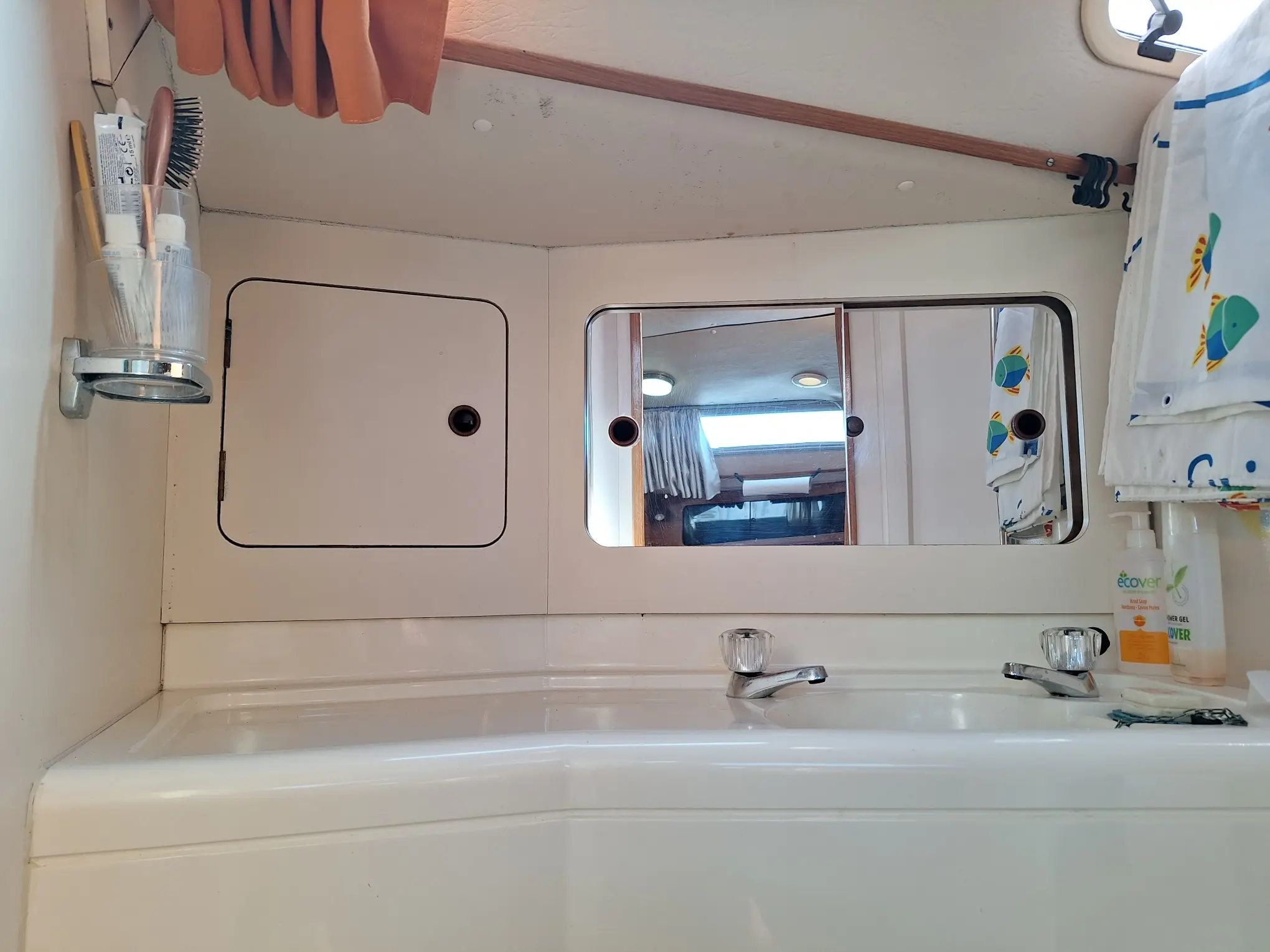

Heads

• To starboard aft of the navigation station is the large heads.
• Fully lined with separate full standing shower and seat.
• Shower drains into a GRP sump with Par electric pump.
• Moulded unit with inset sink hot and cold pressurised water via individual taps.
• Outboard lockers, the larger one has sliding mirror fronted closures.
• Storage lockers under the sink.

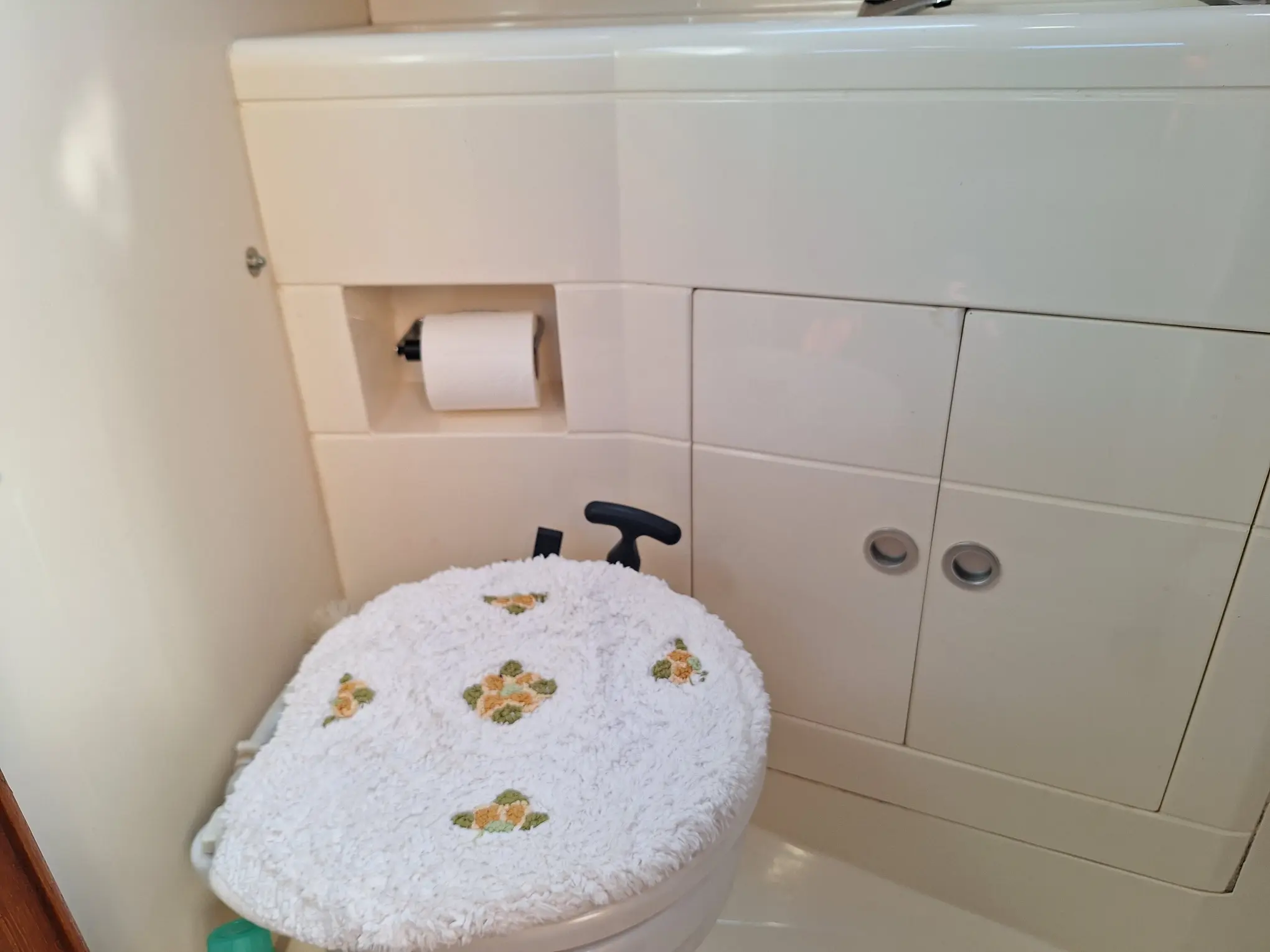

• Manual marine toilet.
• Toilet role holder.
• Cup holder.
• Hull side opening portlight.

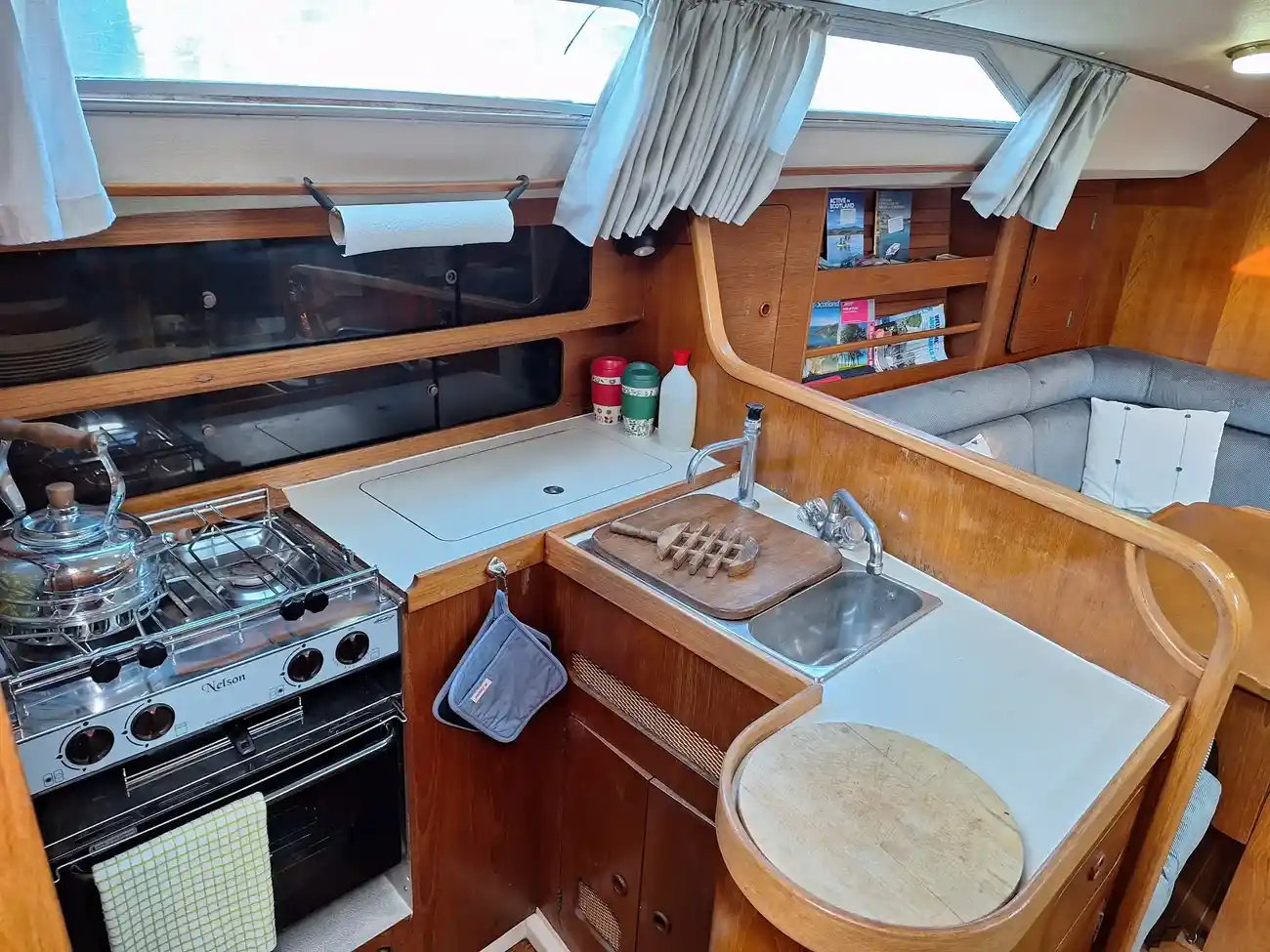

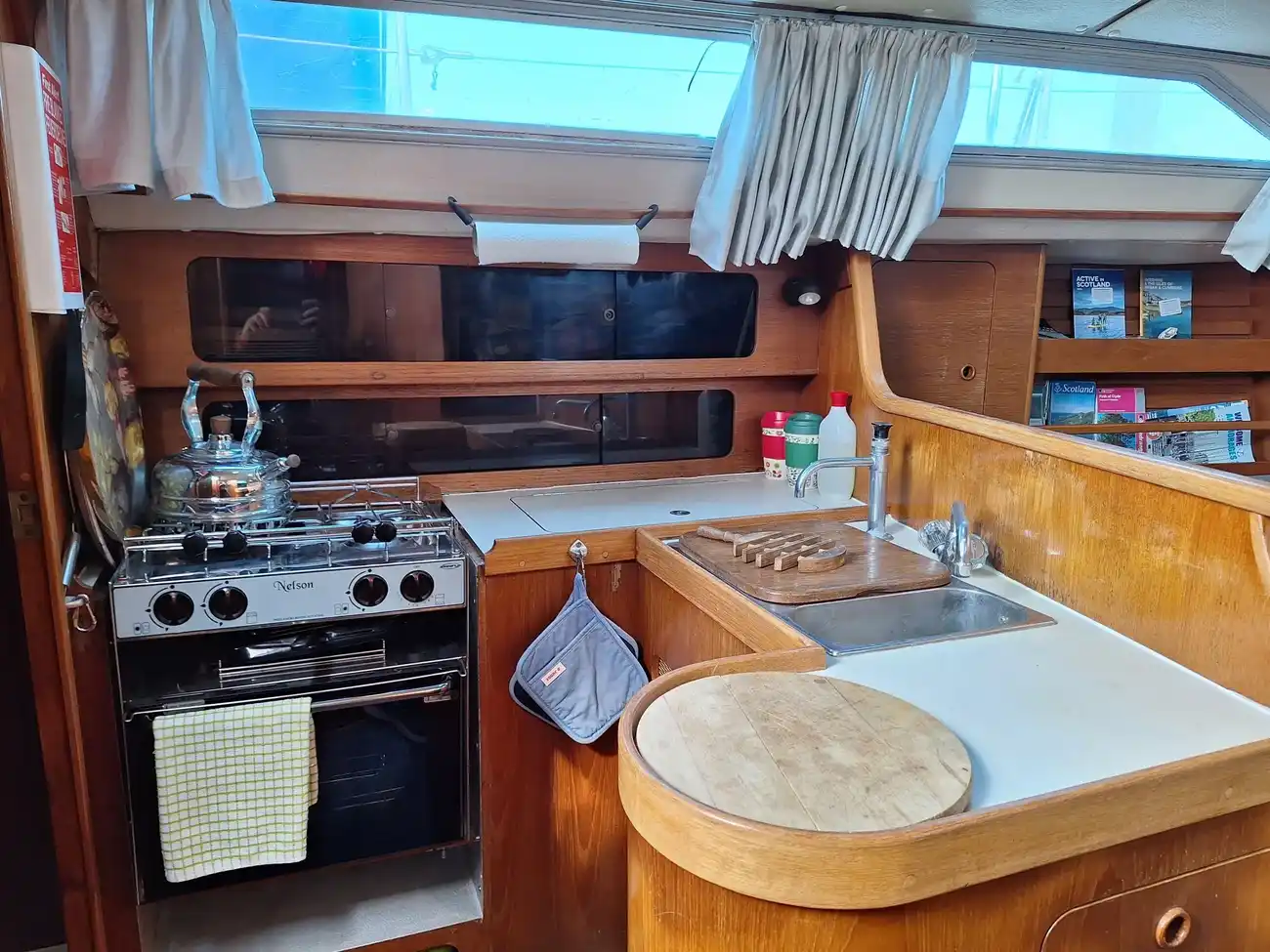

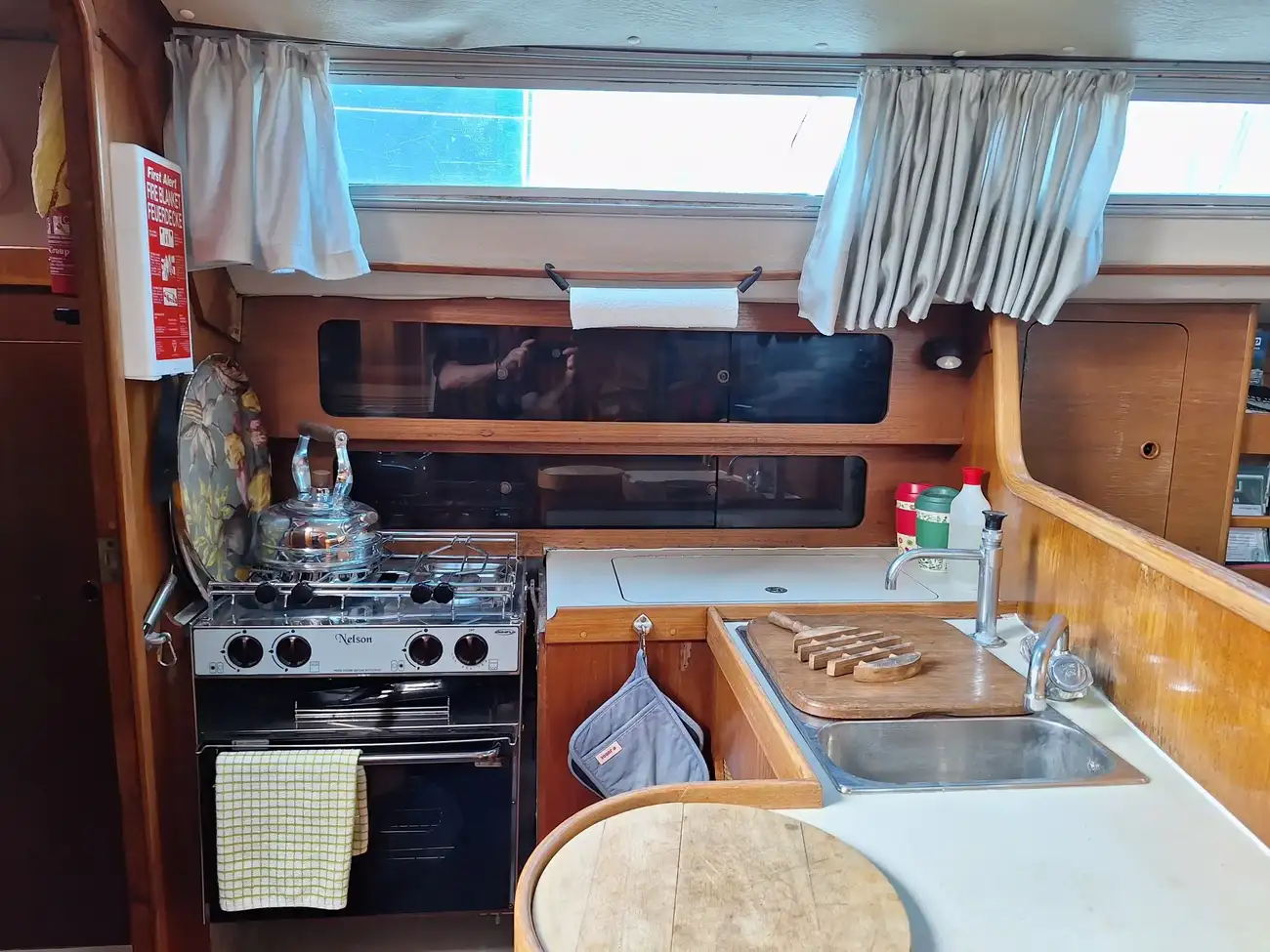

Galley

• Secure U shaped galley area aft to port.
• 1+1/2 stainless steel sinks with pressurised hot and cold water via a mixer tap.
• Manual fresh water pump as a backup.
• Nelson stainless steel gas cooker with 2 burners, grill and oven.
• Large top loading refrigerated cool storage box with Frigoboat ice box/small freezing compartment cooled by an Isotherm compressor.
• Storage outboard above the galley worksurface with Perspex sliding doors.
• Storage lockers below.
• Integral waste bin.

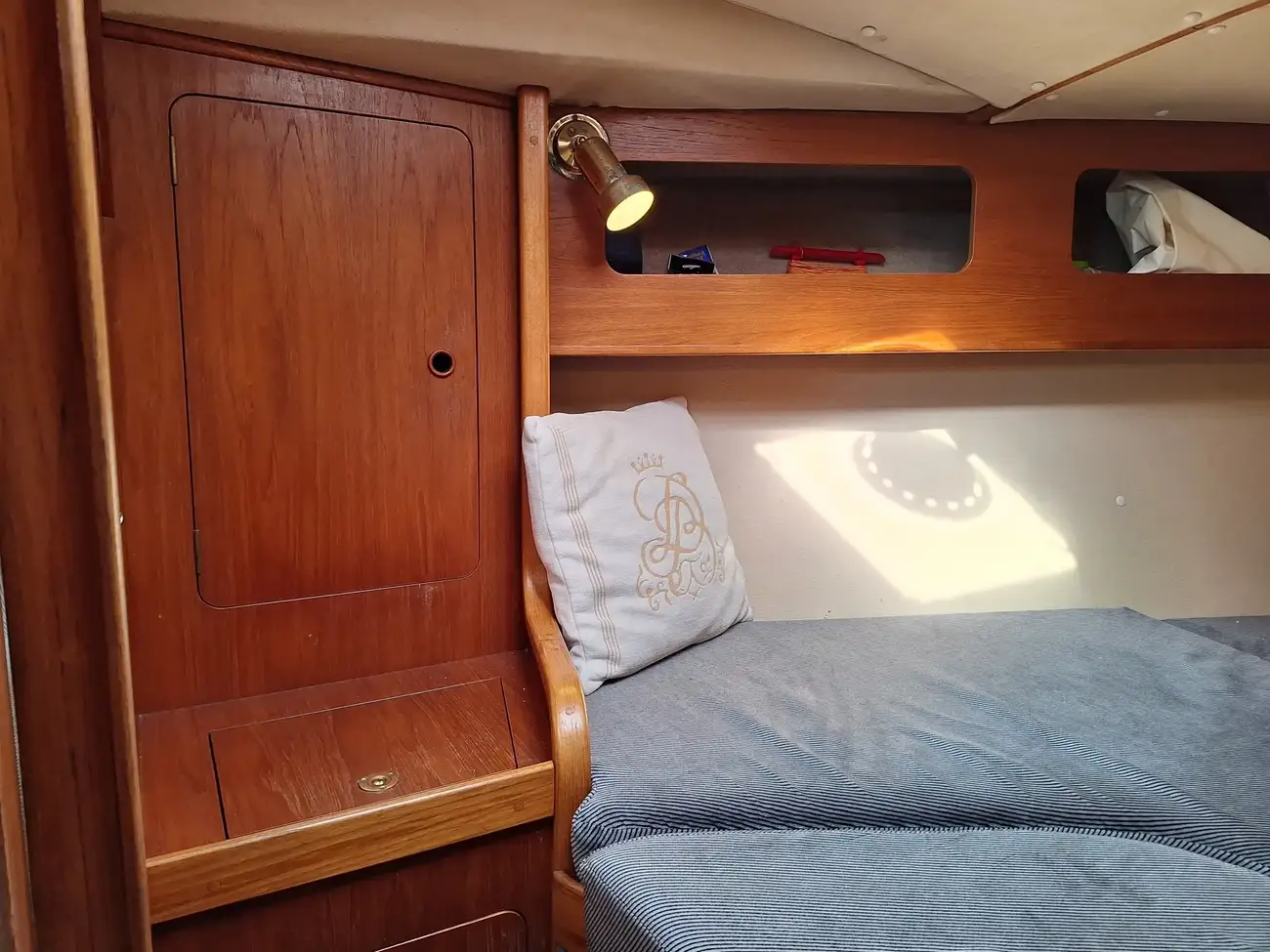

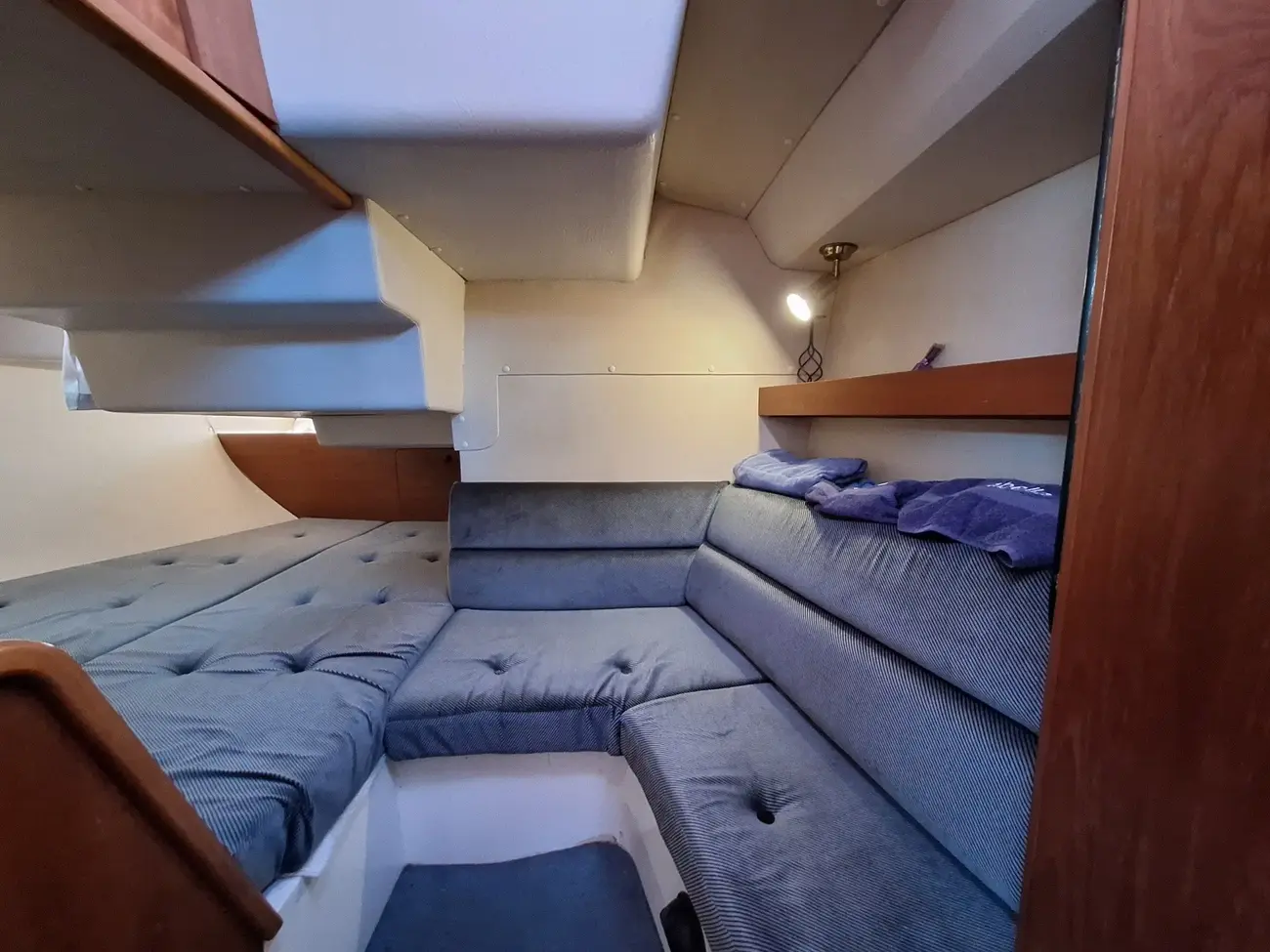

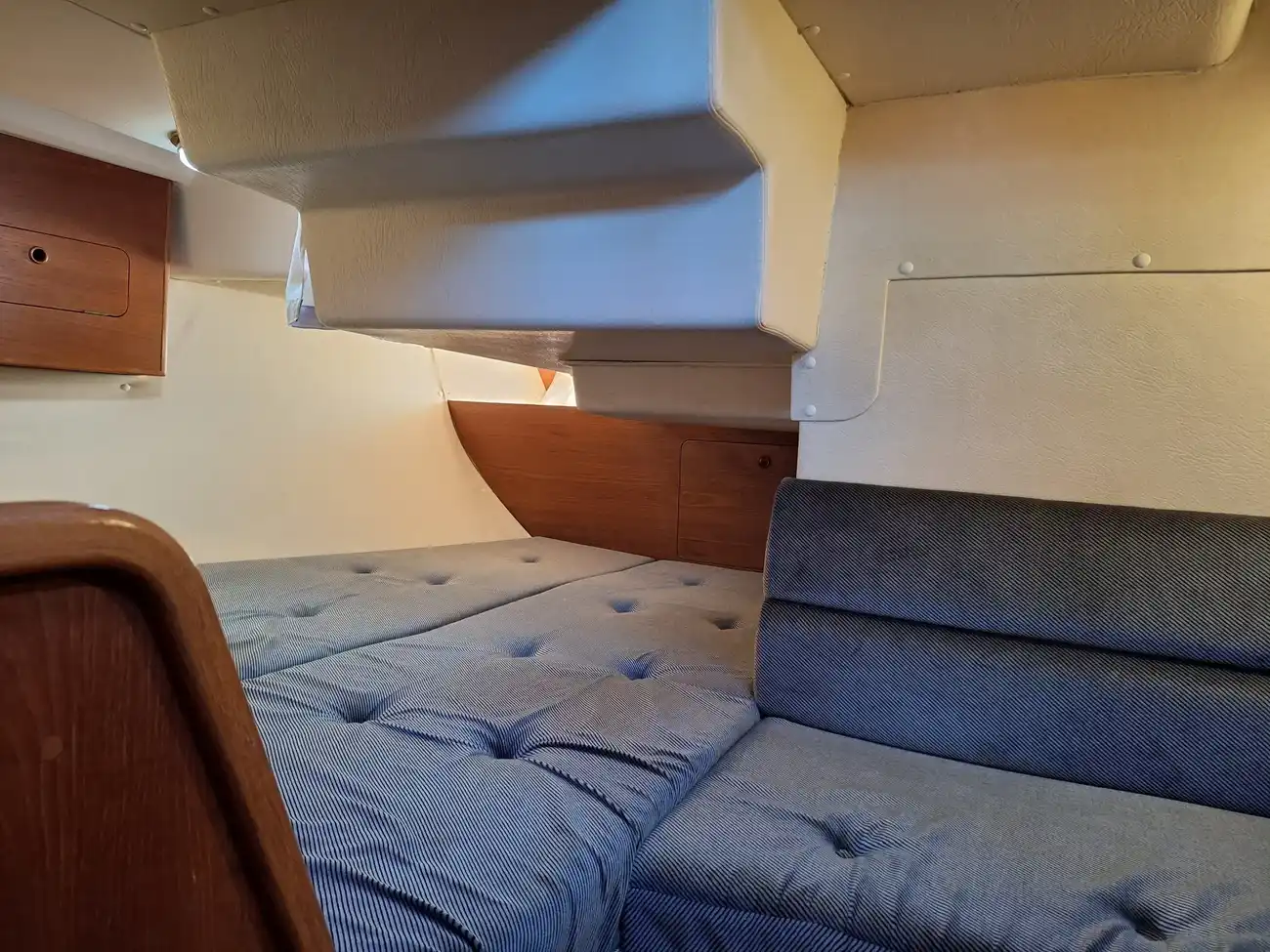

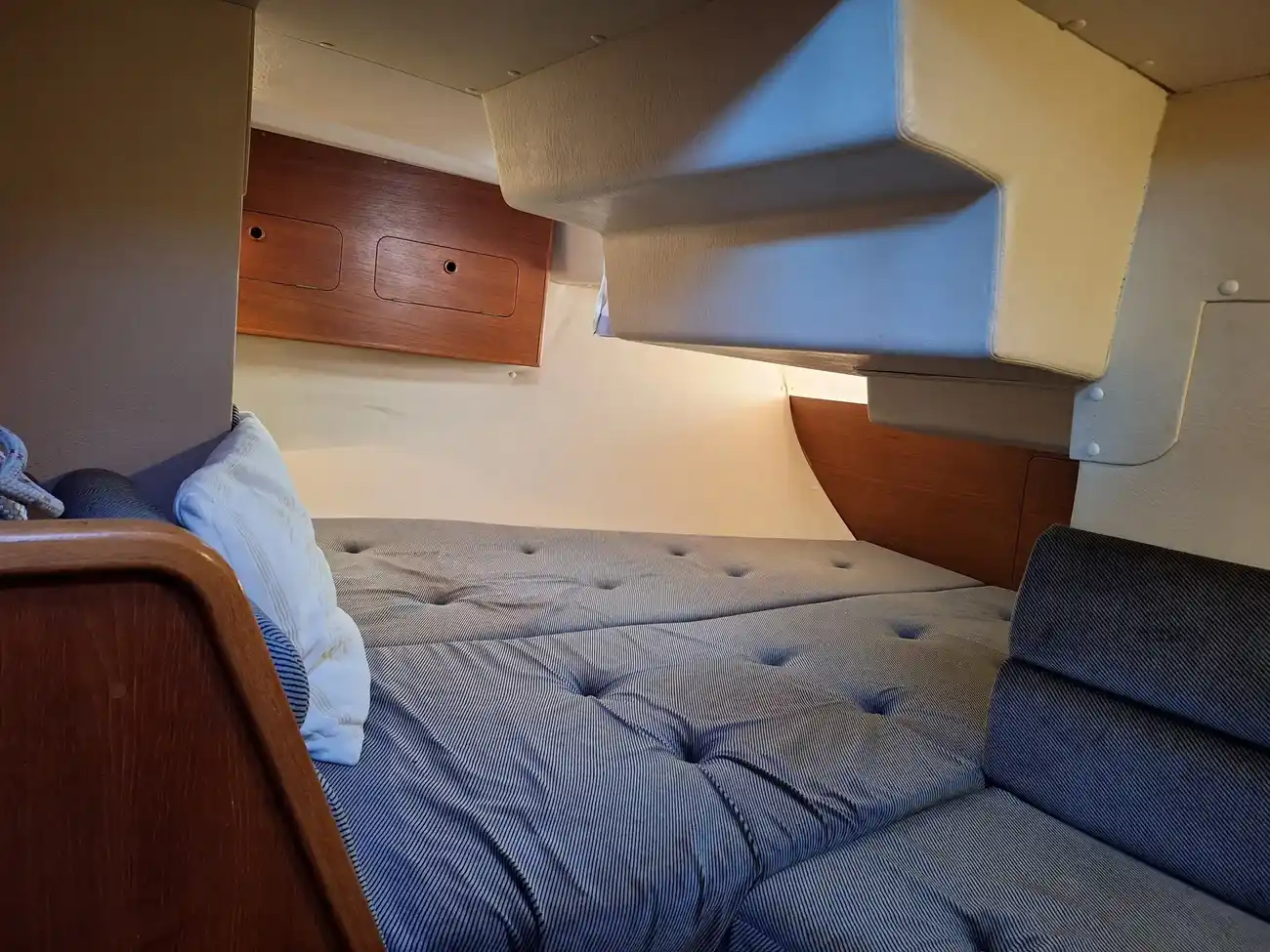

Owners aft cabin

• WOW! This is a full suit with a sofa!
• Large double berth to starboard, sleeping with your feet to the stern. There is actually plenty of room to sleep a child too which is where the 7th is considered.
• Storage lockers outboard and storage at the foot of the bed.

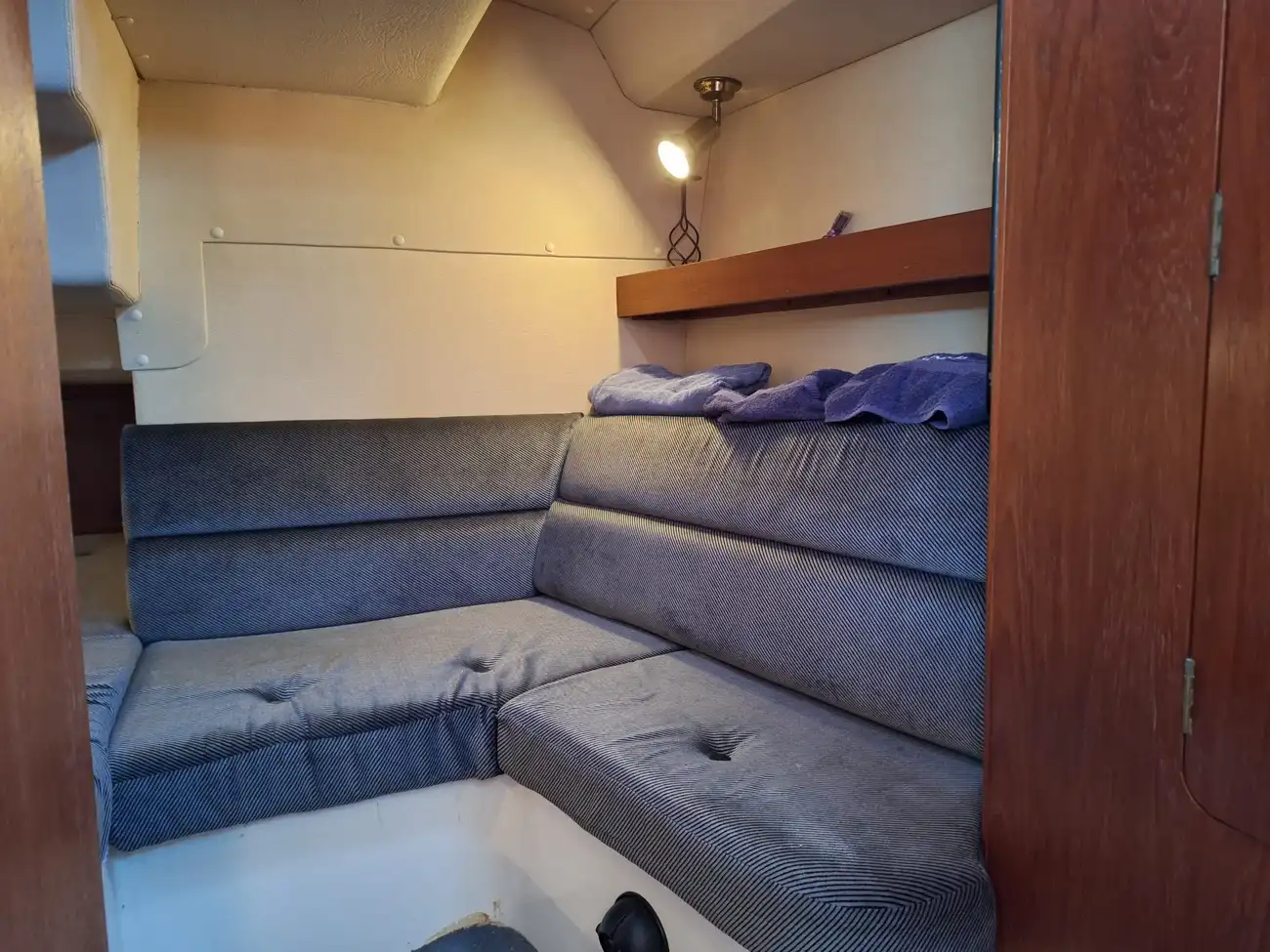

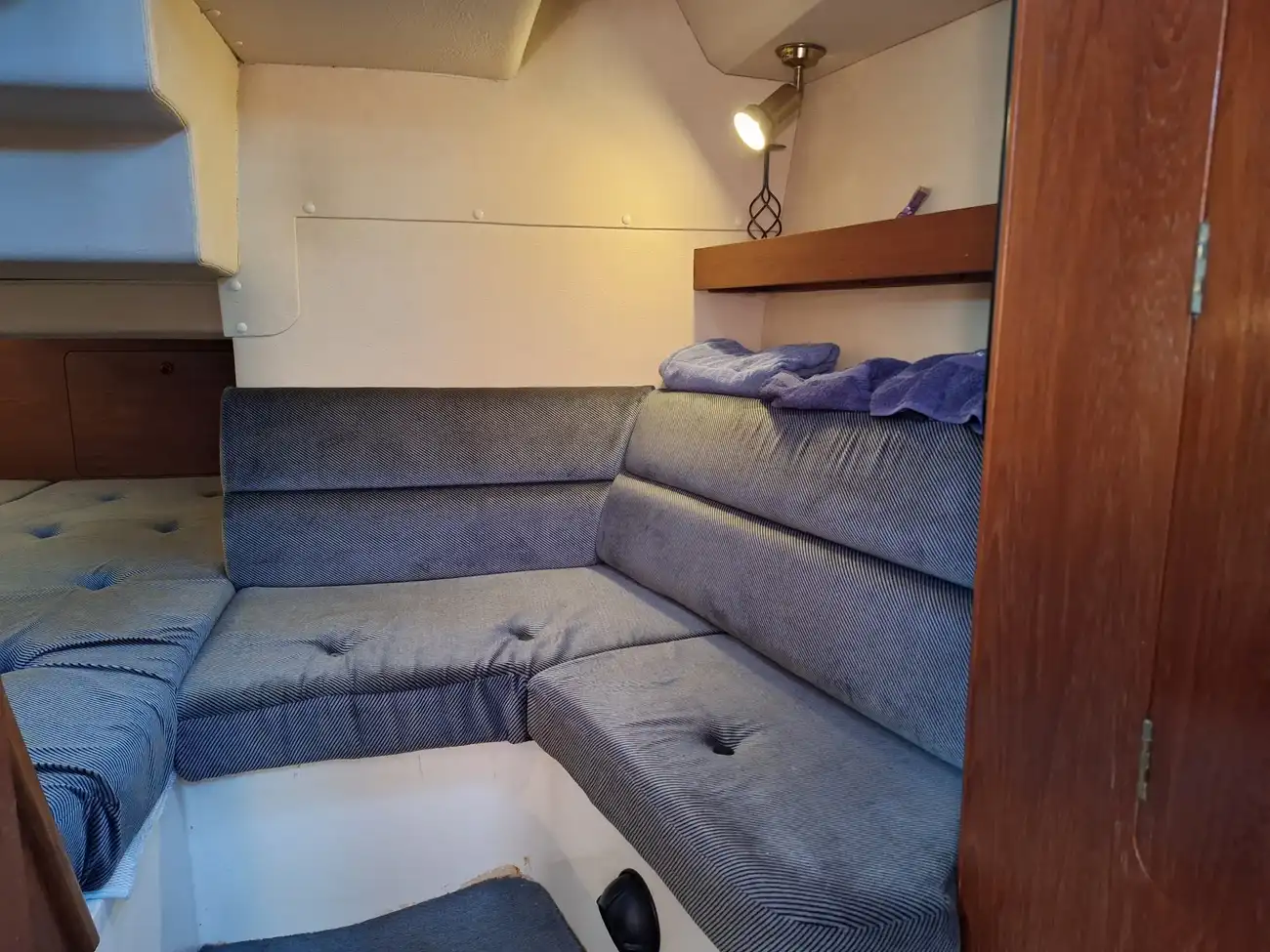

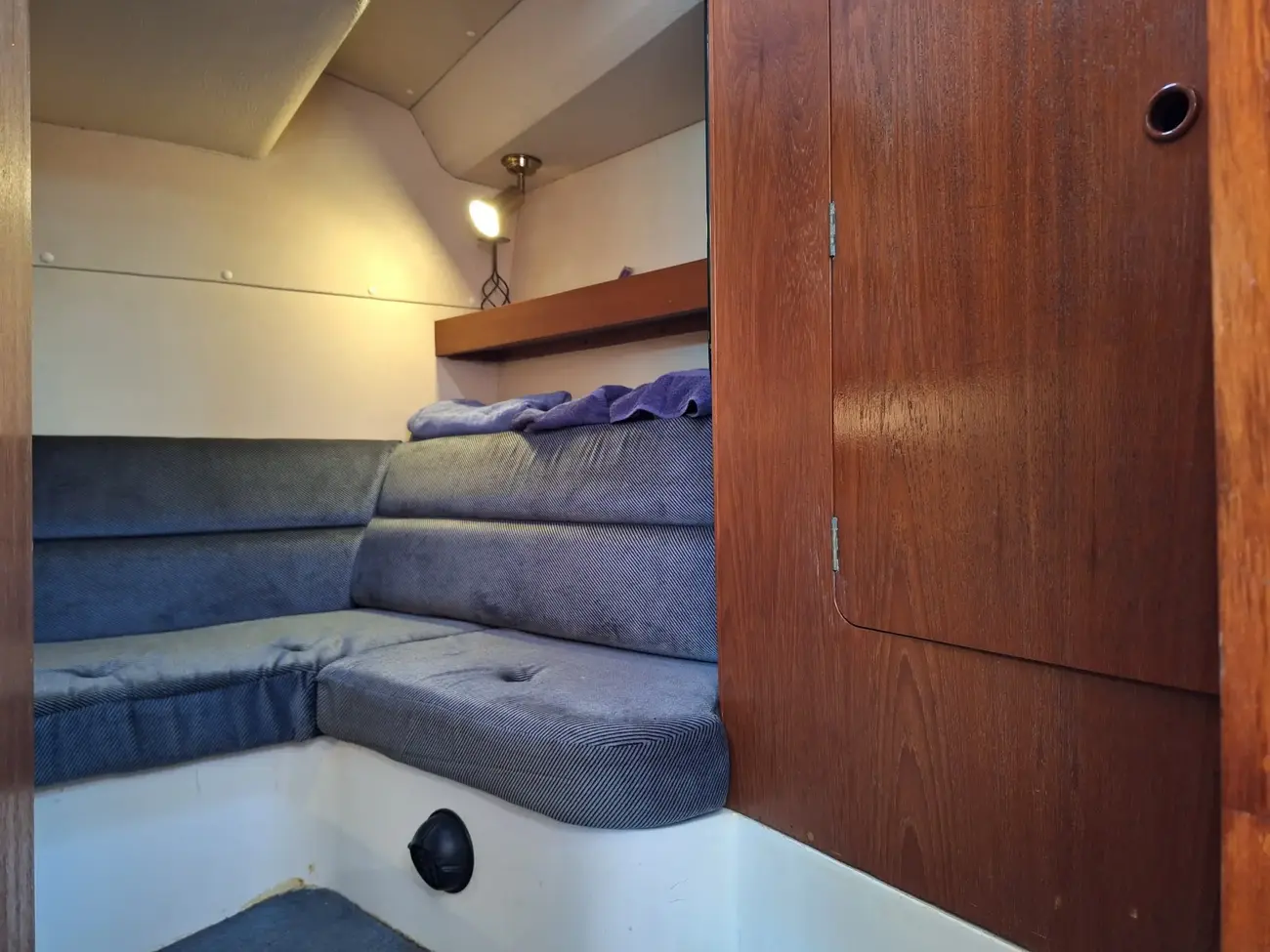

• L shaped seating/changing area to port.
• Large hanging locker and a shelf.

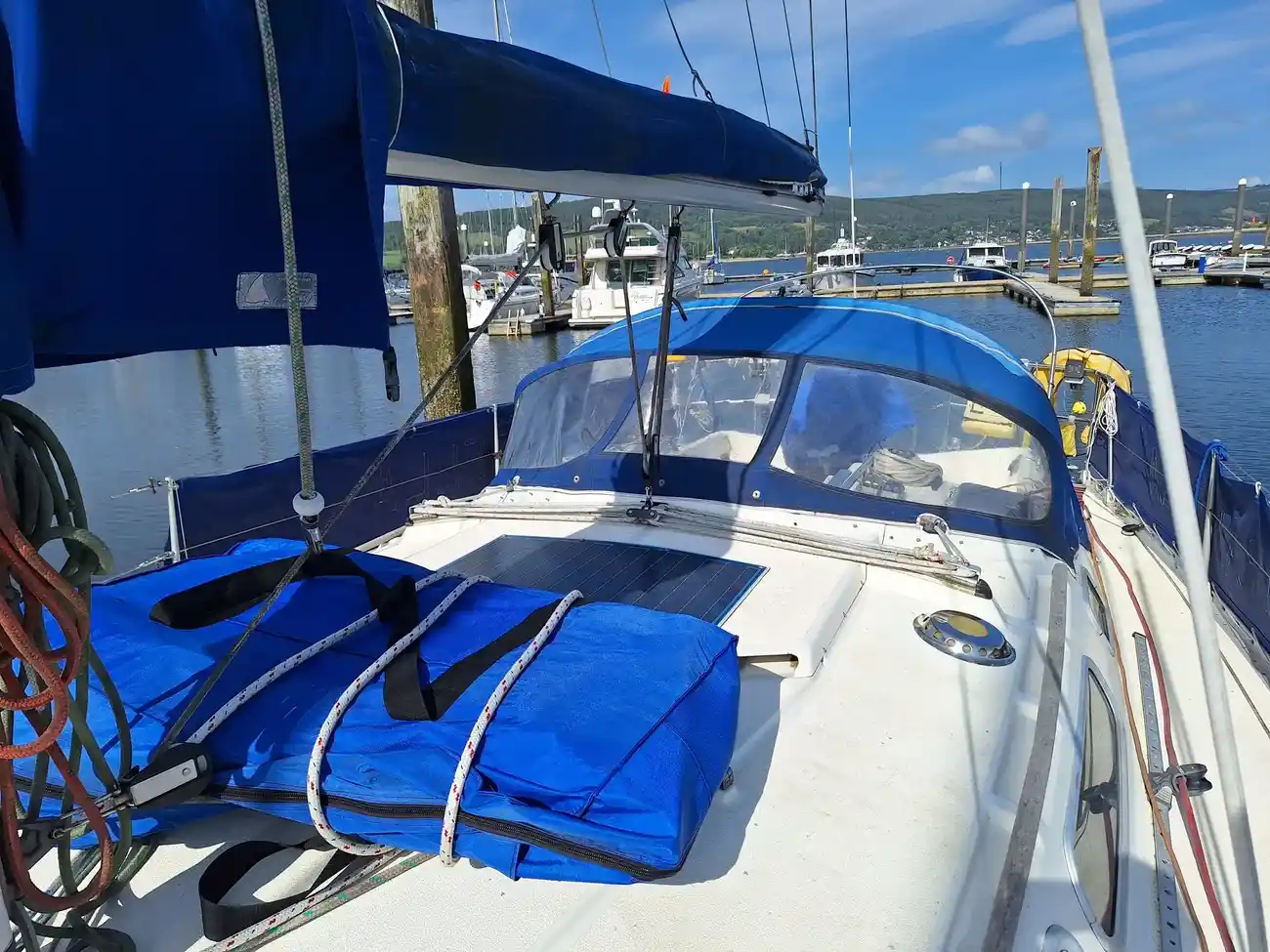

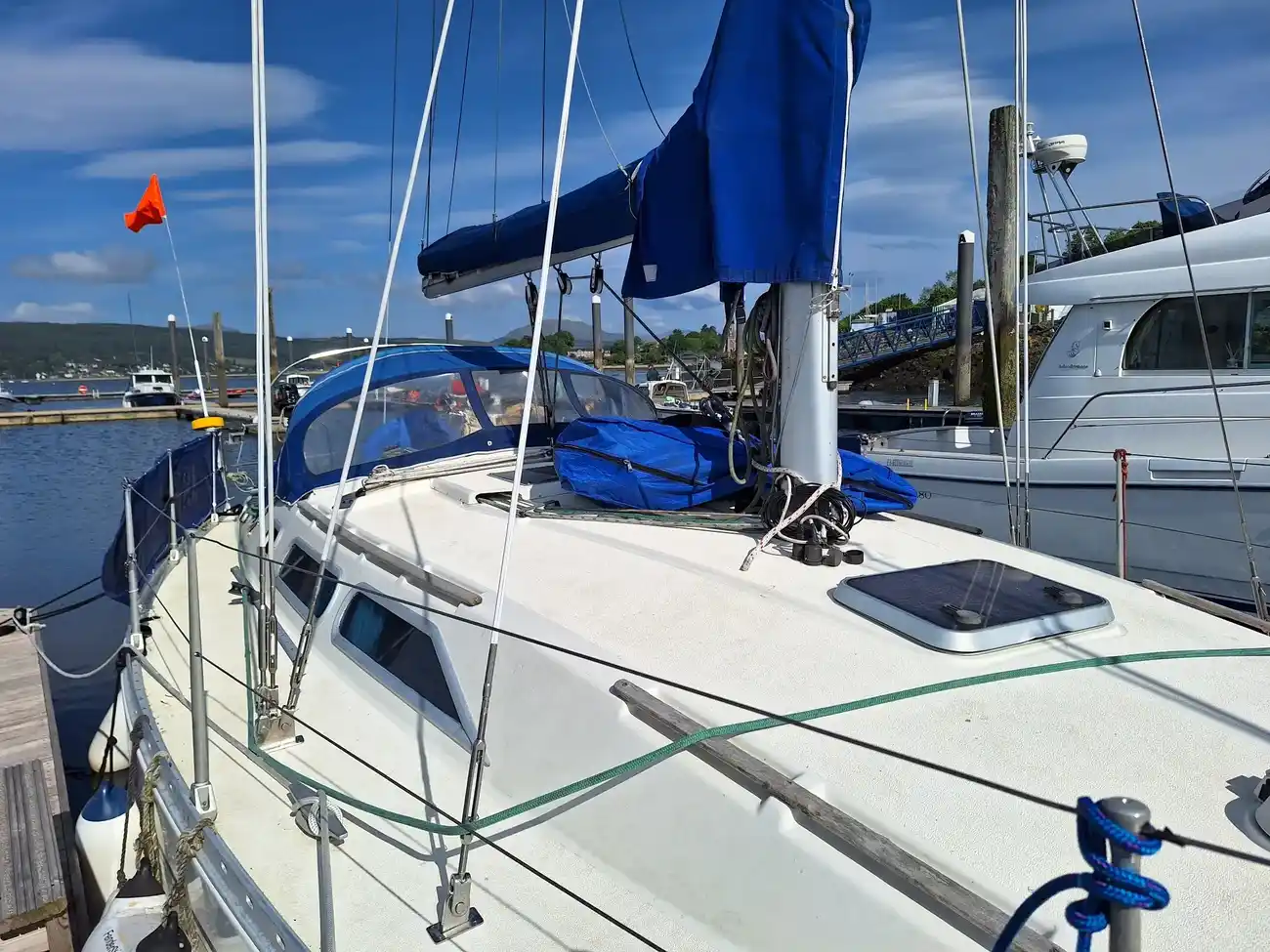

Deck equipment

• Stainless steel pulpit, stanchion posts and quarter pushpits with double lifelines. The lifelines can be opened for MOB recovery and loading and there is also stern access.

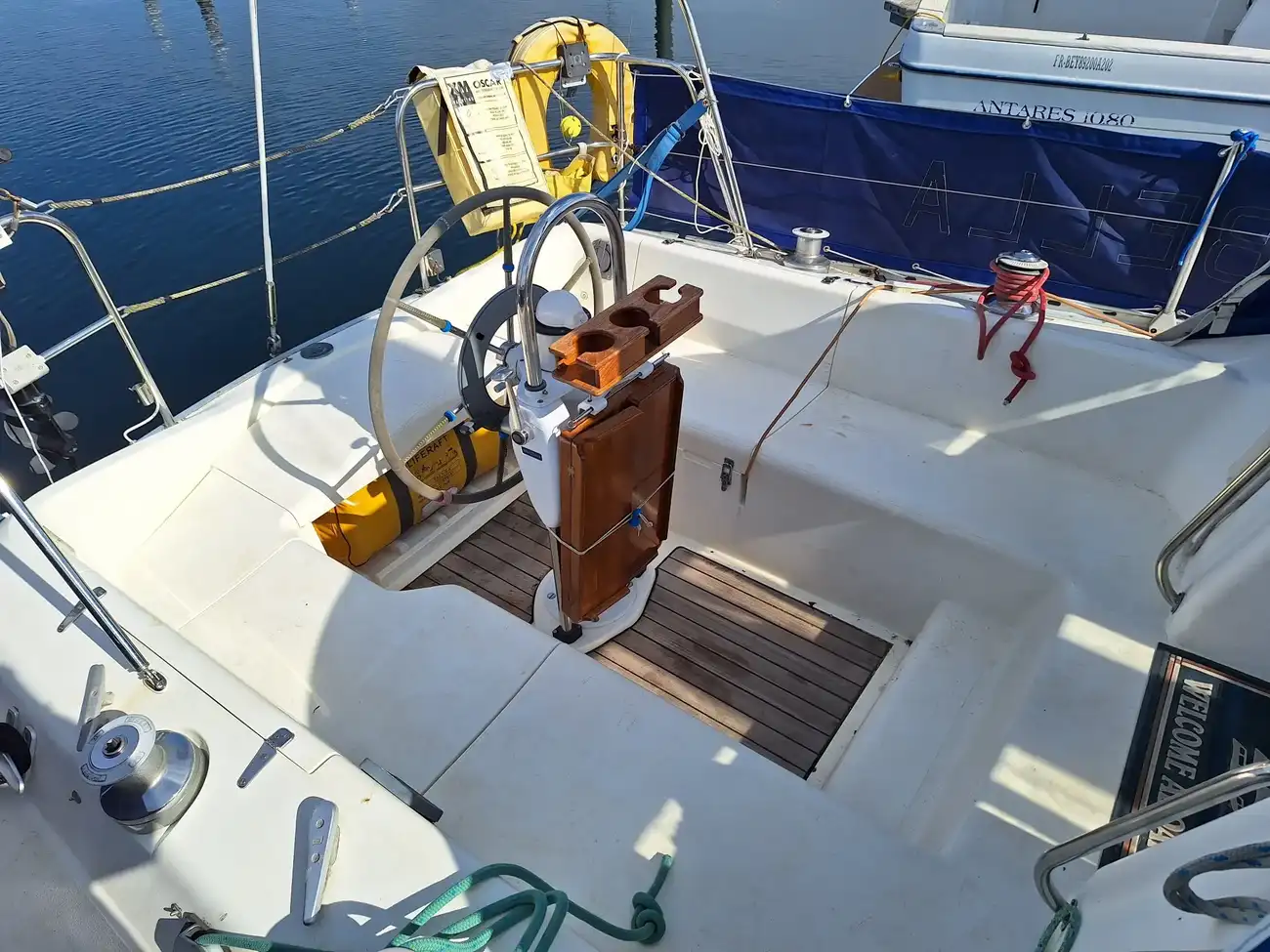

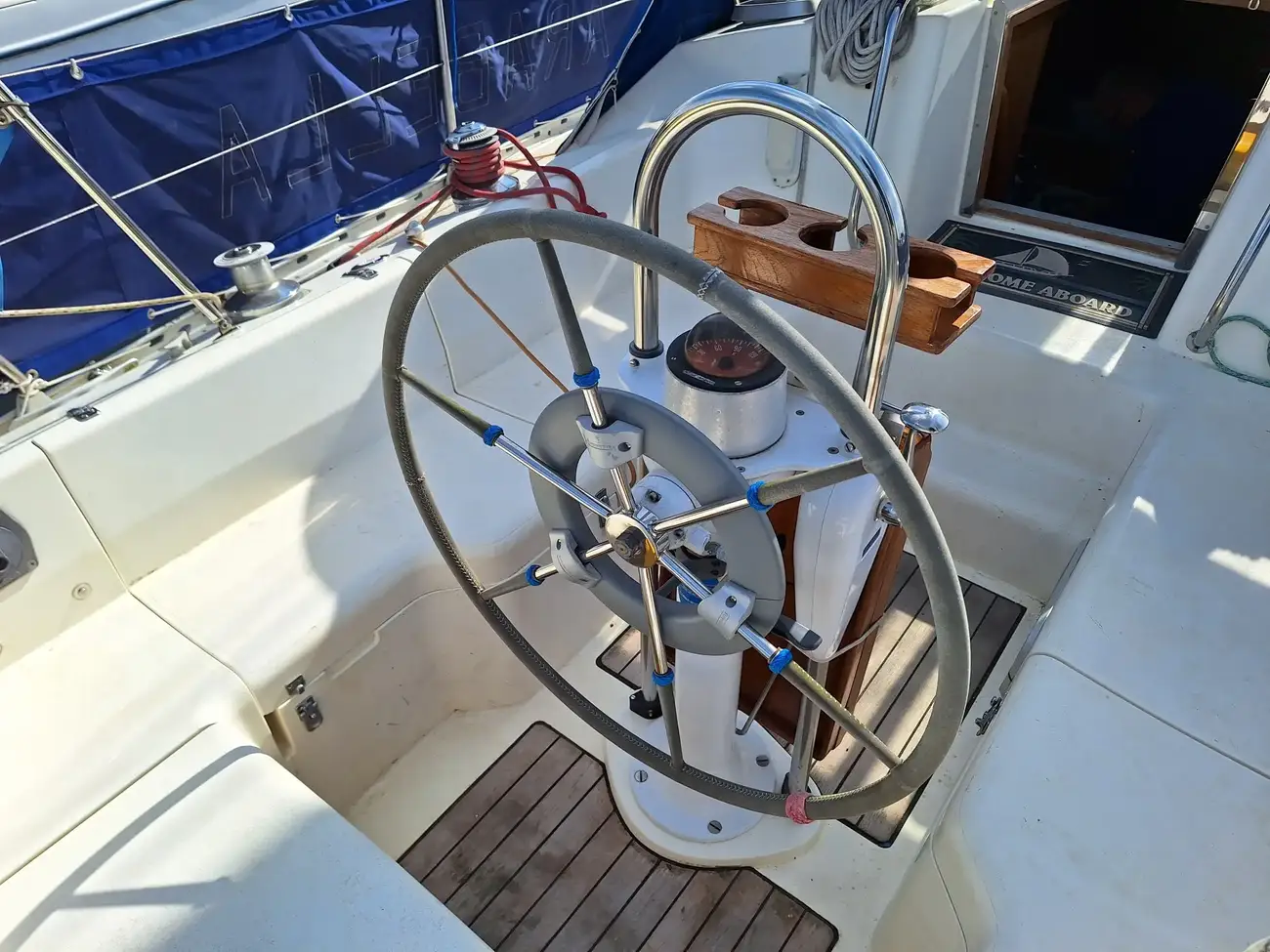

• Whitlock Cobra 5R deluxe alloy wheel steering pedestal.
• 30" stainless steel, leather bound wheel.

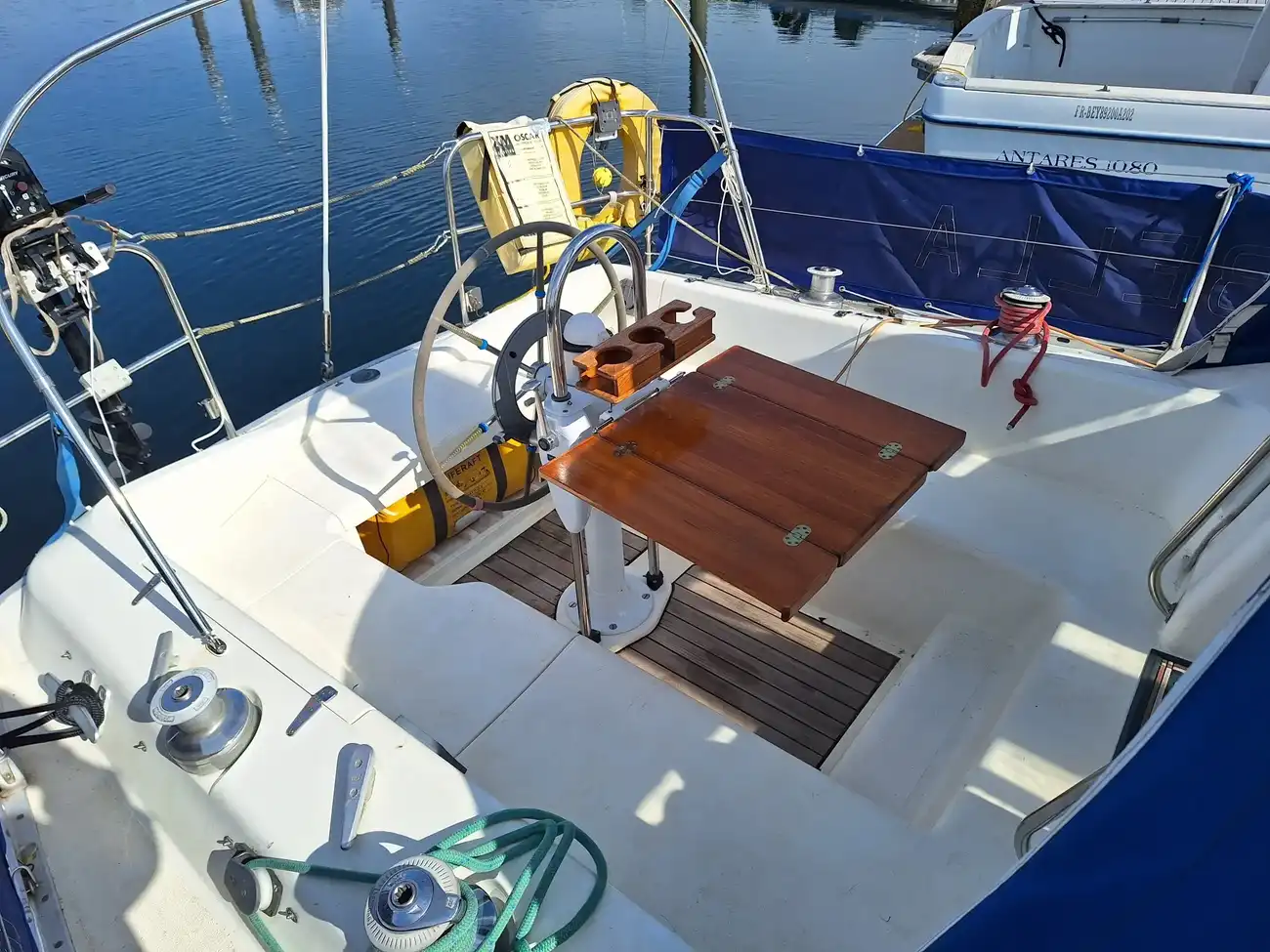

• Pedestal mounted, teak folding leaf cockpit table and drinks holder for 3 cups.

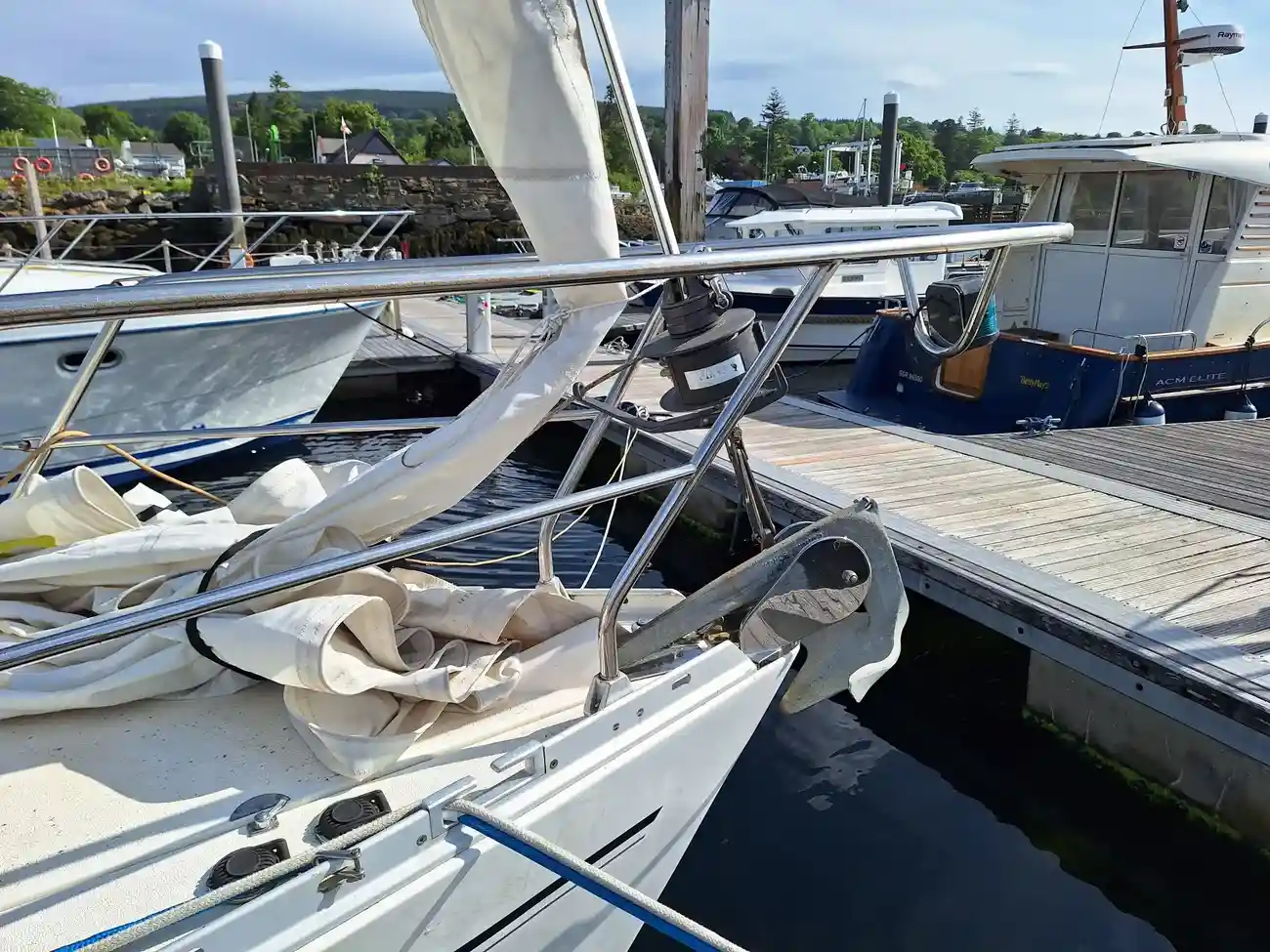

• Lofrans Cayman 88, 12v 1000W electric anchor windlass mounted in the anchor locker, with warping drum and deck foot controls.
• Bruce anchor with chain and warp.
• Forward, midship and stern mooring cleats.
• Fenders and mooring warps.
• Fenda step.
• Outboard bracket.
• Boathook.

Winches

• 2 x Lewmar 44 self tailing primary winches.
• 2 x Lewmar secondary winches.
• 2 x Lewmar 8 halyard winches.
• 1 x Lewmar 6 mast mounted winch.

Rig, rigging and sails

• Kemp, masthead rigged, double spreader silver anodised mast. Mast mounted spinnaker pole track with adjustable pole ring.
• Spinnaker pole.
• Stainless steel standing rigging with fore and aft lowers. Age unknown.
• Kemp slab reefing boom.
• Furlex 200s roller reefing headstay system.
• Coachroof mounted mainsheet track with mainsheet leading to the coachroof winch.
• Side deck genoa tracks with pin stop cars.
• Halyards and primary control lines lead aft via coachroof deck organisers to rope clutches.

Sails

• Fully battened Dacron mainsail with two reefs.
• Mainsail stack pack with lazyjacks.
• Roller furling Genoa. Recently serviced and new UV strip.
• Spare No.1 jib.
• Cruising chute with snuffer.

Engine

• Volvo Penta 2003, 28hp diesel engine with shaft drive to two blade fixed bronze prop.
• Pedestal mounted single lever Morse control.
• Engine hours unknown but runs well.
• Professionally serviced annually by Fruin Engineering.

Electronics and navigation equipment

• Autohelm Navcenter 600 chart plotter. At chart table.
• Icom IC-M423G GPS DSC VHF. At chart table.
• Navico VHF speaker. Hatch garage.

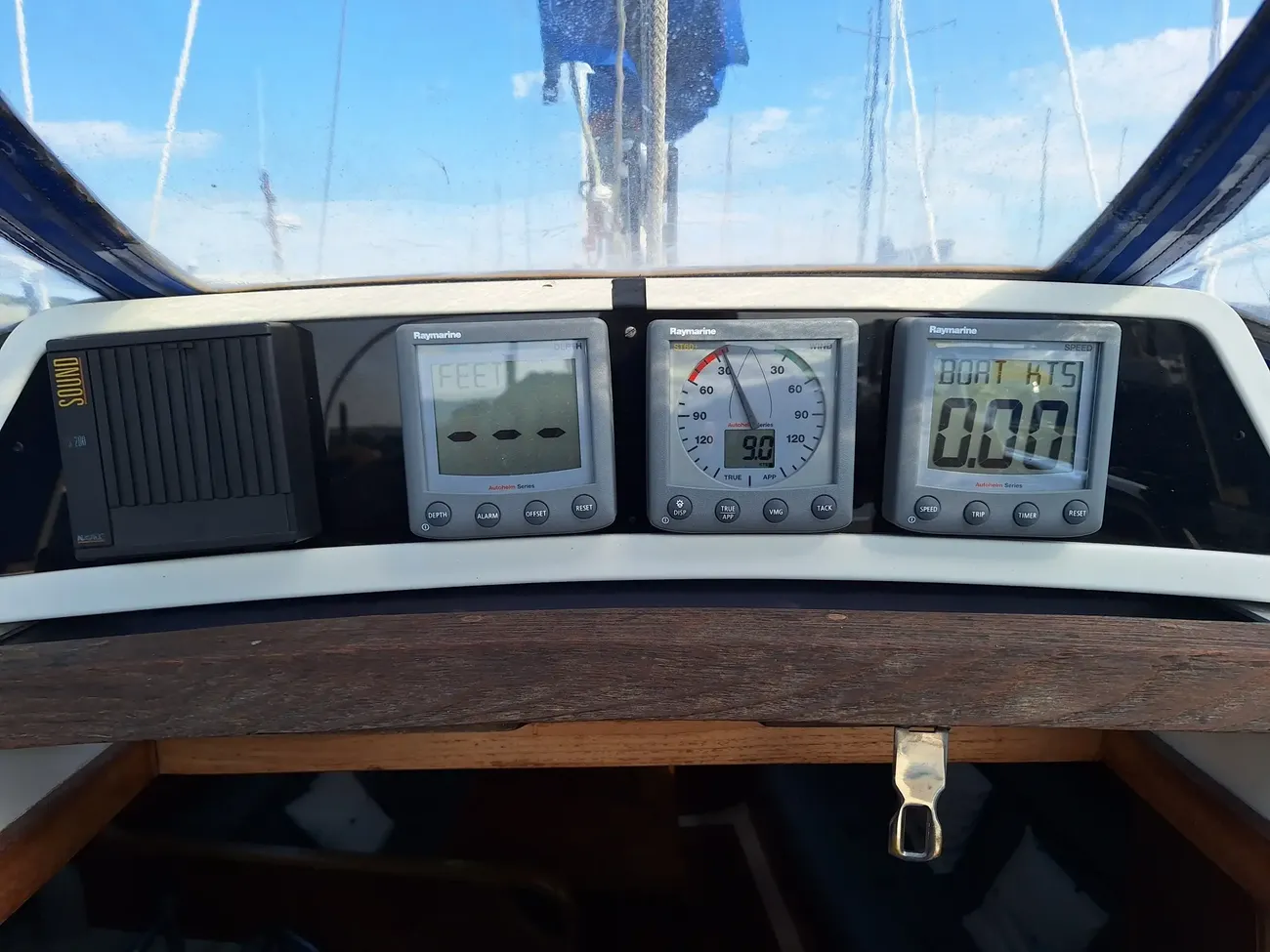

• Raymarine Depth. Hatch garage.
• Raymarine Speed. Hatch garage.
• Raymarine ST60+ Wind. Hatch garage.
• Autohelm ST4000 wheel pilot.
• Raymarine P70 seatalk autopilot control. Cockpit.
• Binnacle mounted magnetic compass.

Electrical

• 12v ships electrics.
• 2 x 120Ah batteries, one engine and one domestic.
• 20amp battery charger.
• Solar panel for trickle charging batteries.
• 240v shore power with circuit breaker + internal sockets.

Tankage and systems

• Fuel - Approx. 118L tank.
• 2 x plastic water tanks - Approx. 204L in total.
• Calorifier tank - Approx. 30L. Heating via engine heat exchanger and 240v immersion heating via shore power.

Canvas work

• Blue mainsail stack pack with mast boot.

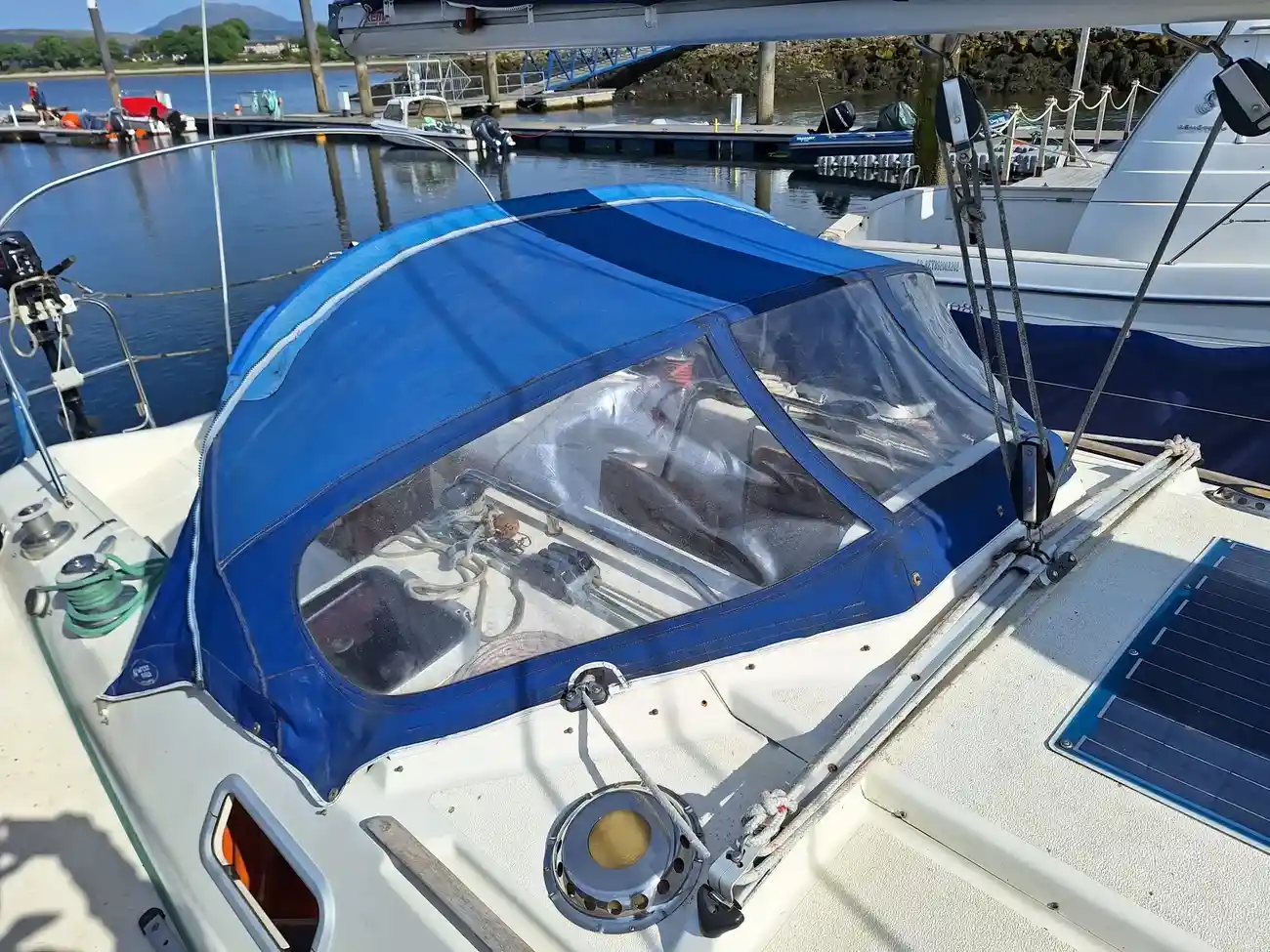

• Blue Sprayhood.
• Blue cockpit tent with clearview panels.
• Blue "Arabella" dodgers.

Safety gear and equipment

• Navigation lighting - Masthead tri-colour and anchor light. Steaming light and deck flood.
• Seago 6 person valise liferaft. Type G6. Approx. 4years old. No recent service information.
• Manual Whale Gusher bilge pump.
• Automatic Rule 500gph bilge pump.
• Fire blanket and fire extinguishers.
• Horseshoe life buoy with light.
• XM Oscar MOB sling.
• Dan buoy.
• 2 x bosuns chairs.
• 8 harnesses with lines.
• Soft wood bungs.

Additional equipment

• Inflatable dinghy with valise.
• Mercury 2.5hp two stroke outboard.
